1.5HP LEESON 1725RPM 56C DP 1PH MOTOR 110388.00

LEESON 110388.00 has been superseded by E110388.00

Catalog Number:  110388.00
Model Number:  C6K17DC4 J
Description:  1.5HP,1725RPM,56C,DP,1PH,60HZ
Ship Weight:  38 lbs.
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 8.8-8.6 F.L. Amps
S. F Amps 19 S. F Amps 9.8-9.5 S. F Amps
RPM 1800 Hertz 60
HP 1.5 Duty CONTINUOUS TYPE KD
KW 1.119 Model # C6K17DC4J
Frame G56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 79 Eff 75%   PF 73
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 41 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting C FACE Rotation SELECTIVE CCW

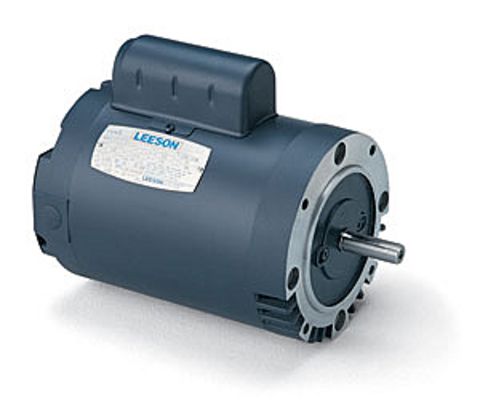

1.5HP LEESON 1725RPM 56C DP 1PH MOTOR 110388.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 110388.00
Stock # 110388
