1HP LEESON 3450RPM 56C DP 1PH MOTOR 110384.00

LEESON 110384.00 has been superseded by E110384.00

Catalog Number:  110384.00 Made in USA
Model Number:  C6C34DC24F
Description:  1HP,3450RPM,56C,DP,1PH,60HZ
Ship Weight:  29 lbs.

APPLICATIONS: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • High-quality ball bearings
  • Capacitor Start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 12 F.L. Amps 6.2-6 F.L. Amps
S. F Amps 14 S. F Amps 7.4-7 S. F Amps
RPM 3600 Hertz 60
HP 1 Duty CONTINUOUS TYPE CD
KW .75 Model # C6C34DC24F
Frame 56C Serv. Factor 1.25 Phase 1
Max Amb 40 Design N Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 70 Eff 75%   PF 76
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 29 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting C FACE Rotation SELECTIVE CCW

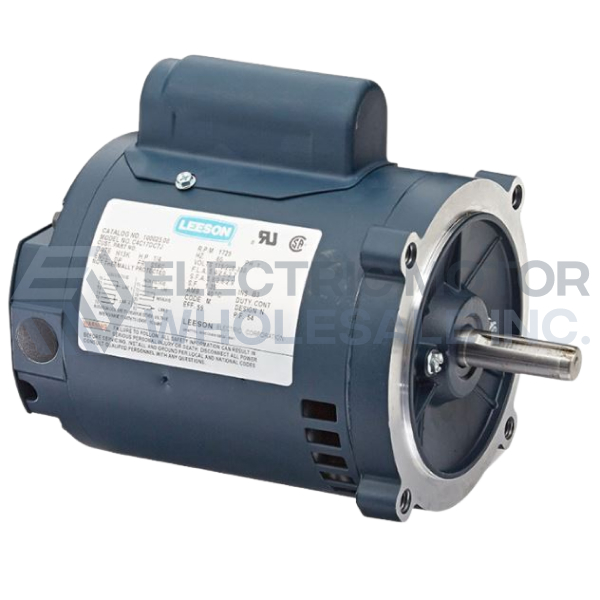

1HP LEESON 3450RPM 56C DP 1PH MOTOR 110384.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 110384.00
Stock # 110384
