1/2HP LEESON 1140RPM 56C DP 1PH MOTOR 110381.00

LEESON 110381.00 has been superseded by E110381.00

Catalog Number:  110381.00
Model Number:  C6C11DC2G
Description:  1/2HP,1140RPM,56C,DP,1PH,60HZ
Ship Weight:  35 lbs.

APPLICATIONS: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

FEATURES:

  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • High-quality ball bearings
  • Capacitor Start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 10 F.L. Amps 5 F.L. Amps
S. F Amps 11 S. F Amps 5.5 S. F Amps
RPM 1200 Hertz 60
HP 1/2 Duty CONTINUOUS TYPE CD
KW 0.37 Model # C6C11DC2G
Frame 56C Serv. Factor 1.25 Phase 1
Max Amb 40 Design N Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 59.5 Eff 75%   PF 54
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 35 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting C FACE Rotation SELECTIVE CCW
1/2HP LEESON 1140RPM 56C DP 1PH MOTOR 110381.00

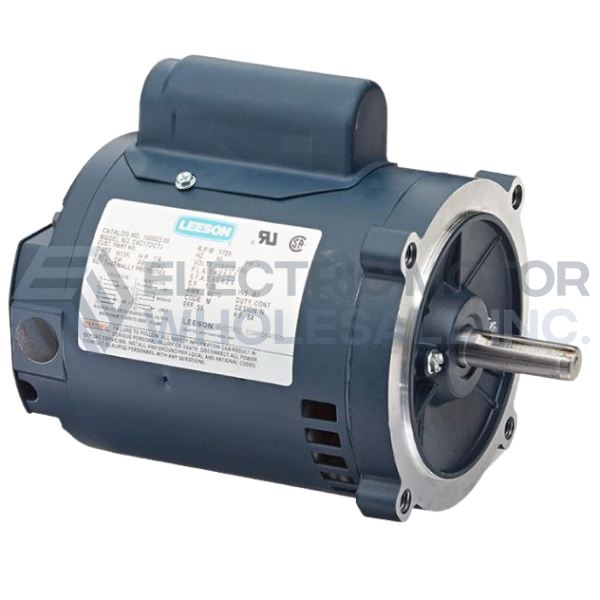

Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 110381.00
Stock # 110381
