2HP LEESON 3450RPM 56 DP 1PH MOTOR 110363.00

LEESON 110363.00 has been superseded by E110363.00

Catalog Number:  110363.00 Made in USA
Model Number:  C6C34DB22E
Description:  2HP,3450RPM,56,DP,1PH,60HZ
Ship Weight:  40 lbs.

LEESON ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Made in USA
  • 5/8" shaft output diameter
  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 20 F.L. Amps 11-10 F.L. Amps
S. F Amps 23.6 S. F Amps 12.8-11.8 S. F Amps
RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE CD
KW 1.492 Model # C6C34DB22E
Frame 56 Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 77 Eff 75%   PF 82
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 40 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID Rotation SELECTIVE CCW

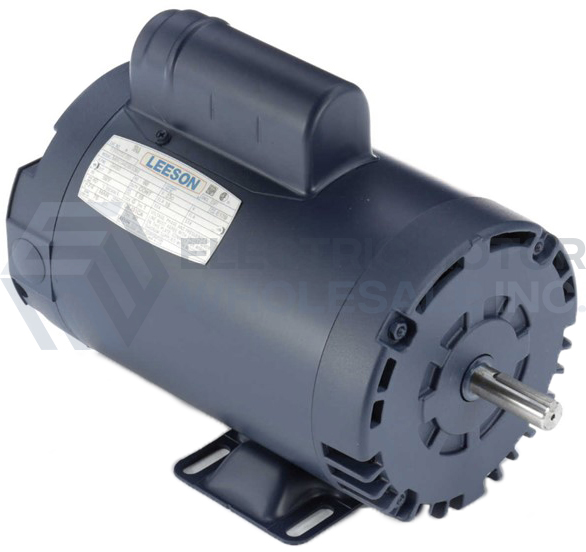

2HP LEESON 3450RPM 56 DP 1PH MOTOR 110363.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 110363.00
Stock # 110363
Price: $326.00
Compare At: $789.00
