1HP LEESON 3450RPM 56 DP 1PH MOTOR 110360.00

LEESON 110360.00 has been superseded by E110360.00

Catalog Number:  110360.00 Made in USA
Model Number:  C6C34DB19
Description:  1HP,3450RPM,56,DP,1PH,60HZ
Ship Weight:  31 lbs.

LEESON ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 12 F.L. Amps 6.2-6 F.L. Amps
S. F Amps 14 S. F Amps 7.4-7 S. F Amps
RPM 3600 Hertz 60
HP 1 Duty CONTINUOUS TYPE CD
KW .75 Model # C6C34DB19H
Frame 56 Serv. Factor 1.25 Phase 1
Max Amb 40 Design N Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 70 Eff 75%   PF 76
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 31 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID Rotation SELECTIVE CCW

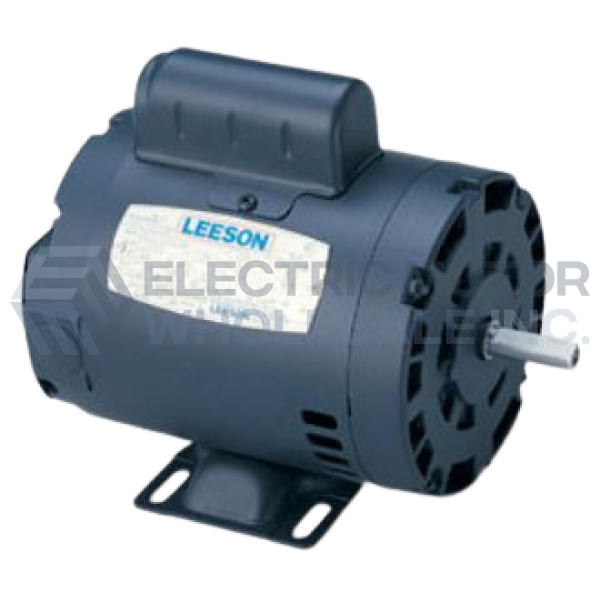

1HP LEESON 3450RPM 56 DP 1PH MOTOR 110360.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 110360.00
Stock # 110360
