1.5HP LEESON 3450RPM 56C TEFC 3PH MOTOR 110192

LEESON Catalog Number:  110192.00
Description:  1.5HP,3450RPM,56C,TEFC,3PH,60HZ
Ship Weight:  29 lbs.

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 208-230 Volts 460 Volts
F.L. Amps 4.4-4.2 F.L. Amps 2.1 F.L. Amps
S. F Amps 5-4.8 S. F Amps 2.4 S. F Amps
RPM 3600 Hertz 60
KW 1.12 Model Number C6T34FC5 G
Frame 56C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class B Protection NOT Therm.Prot.
Eff 100% 81.5 Eff 75%   PF 84
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 29 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting C FACE Rotation REV

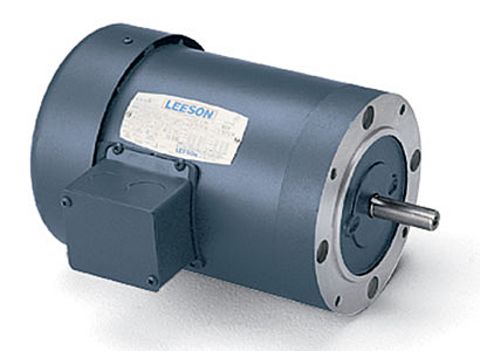

1.5HP LEESON 3450RPM 56C TEFC 3PH MOTOR 110192
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 110192.00
Stock # 110192
