1HP LEESON 3450RPM 56 DP 1PH MOTOR 110160.00

Catalog Number:  110160.00 - Made in USA
Model Number:  M6C34DB6 J
Description:  1HP,3450RPM,56,DP,1PH,60HZ
Ship Weight:  30 lbs.

LEESON ODP Models: Designed for air compressor, pump, fan and blower duty applications which require high breakdown torque and rugged mechanical construction.

Features Include:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • Double shielded ball bearings
  • Designed for belted loads
  • High efficient Class “F” copper windings
  • High starting and breakdown torque
  • Dual rotation
  • 1 year warranty
Volts 115 Volts 230 Volts
F.L. Amps 13.4 F.L. Amps 6.7 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 1 Duty CONTINUOUS TYPE CD
KW .75 Model # M6C34DB6J
Frame 56Y Serv. Factor SPEC Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection MANUAL Therm.Prot. CEJ50CA
Eff 100% 67 Eff 75%   PF 72
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 30 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004001 Mounting RIGID Rotation SELECTIVE CCW

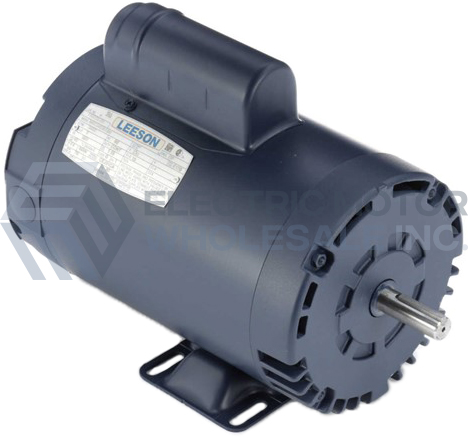

1HP LEESON 3450RPM 56 DP 1PH MOTOR 110160.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 110160.00
Stock # 110160
Price: $283.00
Compare At: $514.00
