1.5HP LEESON 3450RPM 56 DP 115/208-230V 1PH MOTOR 110110.00

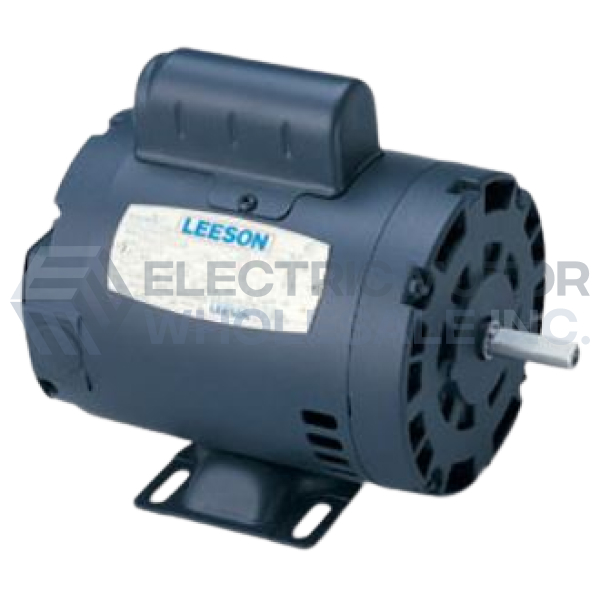

Picture is for reference only.

Part Number:

110110.00

Model/Spec Number:

M6C34DB4E

Manufacturer:

Leeson Obsolete

110110.00 LEESON 1.5HP Single Phase Electric Motor for use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

30 lbs

Dimensions:

11 x 18 x 11 inches

HS Code:

8501.40.0000

Technical Details

Specifications

Application:	General Purpose
Output HP:	1.5
Output KW:	1.1
Output RPM:	3450
Frame NEMA:	56
Mount NEMA:	Base Mount
Enclosure NEMA:	DP
Voltage:	115/208-230
Frequency (Hz):	60
Efficiency:	74.0

Documentation

Motor Drawing

Connection Diagram

Additional Information

Volts	115	Volts	208-230	Volts
F.L. Amps	16.4	F.L. Amps	8.6-8.2	F.L. Amps
S. F Amps	18	S. F Amps	9.8-9	S. F Amps
RPM	3600	Hertz	60
HP	1.5	Duty	CONTINUOUS	TYPE	CD
KW	1.119	Model #	M6C34DB4E
Frame	56	Serv. Factor	1.15	Phase	1
Max Amb	40	Design	L	Code	G
Insul Class	B	Protection	MANUAL	Therm.Prot.	CEJ38CA
Eff 100%	74	Eff 75%		PF	80
UL	No	CSA	Yes	Bearing OPE	6203
CC Number		CE	No	Bearing PE	6203
Load Type		Inverter Type	NONE	Speed Range	NONE
Motor Wt.	31 LB	Enclosure	DP	Lubrication	POLYREX EM
Nameplate	004004	Mounting	RIGID	Rotation	SELECTIVE CCW
