1.5HP LEESON 3450RPM 56 TEFC 1PH MOTOR 110094.00

Catalog Number:  110094.00 Made in USA
Model Number:  C6C34FB6J
Description:  1.5HP,3450RPM,56,TEFC,1PH,60HZ
Ship Weight:  34 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • High-quality ball bearings
  • Capacitor Start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 17 F.L. Amps 8.5 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 1.5 Duty CONTINUOUS TYPE CF
KW 1.12 Model Number C6C34FB6J
Frame 56 Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code H
Insul Class B Protection NOT Therm.Prot.
Eff 100% 72 Eff 75%   PF 80
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 34 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
1.5HP LEESON 3450RPM 56 TEFC 1PH MOTOR 110094.00

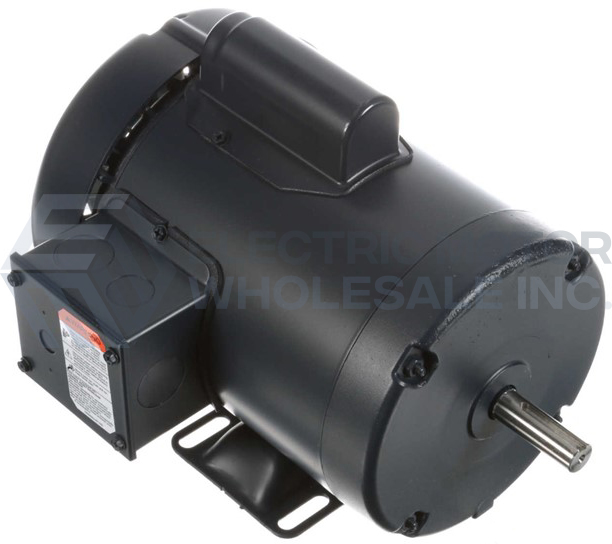

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 110094.00
Stock # 110094
Price: $280.00
Compare At: $677.00
