1/2HP LEESON 1200RPM 56 TEFC 115/208-230V 1PH MOTOR 110011.00

Catalog Number:   110011.00 - FREE Ground Shipping in USA
Model Number:  C6C11FB2G
Description:  1/2HP,1140RPM,56,TEFC,115/208-230V,1PH,60HZ
Ship Weight:  41 lbs.

LEESON Single Phase General Purpose Motor For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.


  • Made in USA
  • Durable rolled steel frame
  • 5/8" Keyed output shaft
  • Double-shielded ball bearings
  • Continuous duty
  • Meets or exceeds NEMA service factors
  • Capacitor Start
  • UL Recognized Component Listing and CSA approval
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 9.4 F.L. Amps 4.6-4.7 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1200 Hertz 60
KW .37 Model Number C6C11FB2G
Frame 56 Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 41 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
1/2HP LEESON 1200RPM 56 TEFC 115/208-230V 1PH MOTOR 110011.00

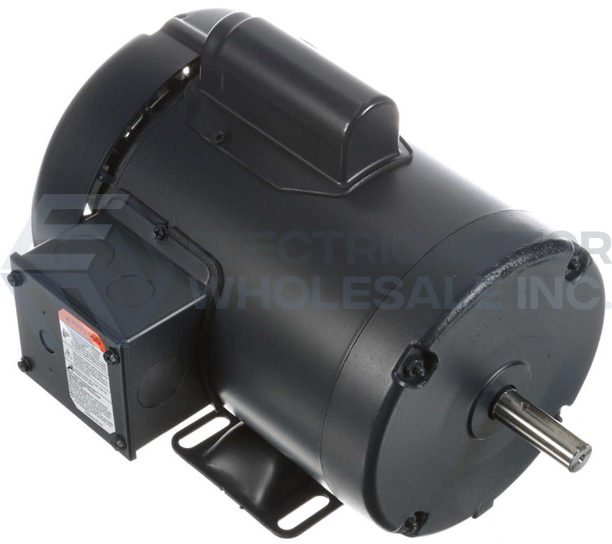

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 110011.00
Stock # 110011
Price: $440.00
Compare At: $1,044.00
