3/4HP LEESON 1140RPM 56H DP 1PH MOTOR 110003.00

LEESON 110003.00 has been superseded by E110003.00

Catalog Number:  110003.00 Made in USA
Model Number:  C6C11DB3F
Description:  3/4HP,1140RPM,56H,DP,1PH,60HZ
Ship Weight:  47 lbs.

LEESON ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Made in USA
  • Durable rolled steel frame
  • Automatic thermal protection
  • 5/8" shaft output diameter
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 12.8 F.L. Amps 6.4 F.L. Amps
S. F Amps 13.6 S. F Amps 6.8 S. F Amps
RPM 1200 Hertz 60
KW 0.56 Model # C6C11DB3F
Frame 56H Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 62 Eff 75%   PF 62
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 47 LB Enclosure DP Lubrication STANDARD
Nameplate 004003 Mounting RIGID Rotation SELECTIVE CCW

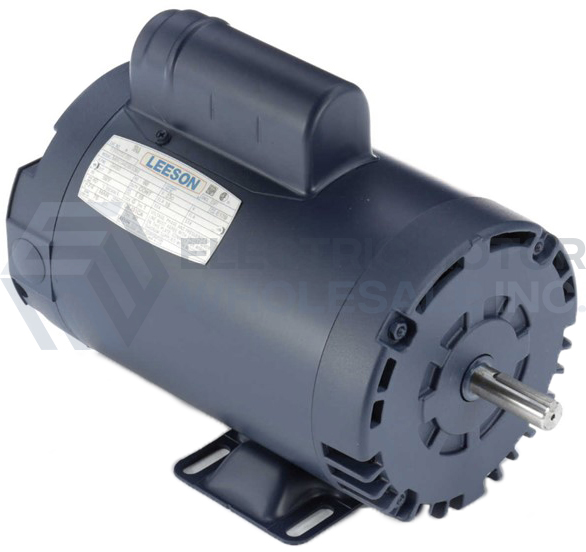

3/4HP LEESON 1140RPM 56H DP 1PH MOTOR 110003.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 110003.00
Stock # 110003
