1HP LEESON 1725RPM 56 DP 1PH MOTOR 110000.00

Catalog Number:  110000.00 Made in USA
Model Number:  A6C17DB1J
Description:  1HP,1725RPM,56,DP,1PH,60HZ
Ship Weight:  31 lbs.

LEESON ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Made in USA
  • 5/8" shaft output diameter
  • Durable rolled steel frame
  • Automatic Overload Protection
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 12.8 F.L. Amps 6.4 F.L. Amps
S. F Amps 13.6 S. F Amps 6.8 S. F Amps
RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE CD
KW .75 Model # A6C17DB1J
Frame E56 Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection AUTOMATIC Therm.Prot. CEJ50CV
Eff 100% 75 Eff 75%   PF 68
UL Yes CSA Yes Bearing OPE
CC Number EXEMPT CE No Bearing PE
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 31 LB Enclosure DP Lubrication STANDARD
Nameplate 004004 Mounting RIGID Rotation SELECTIVE CCW
1HP LEESON 1725RPM 56 DP 1PH MOTOR 110000.00

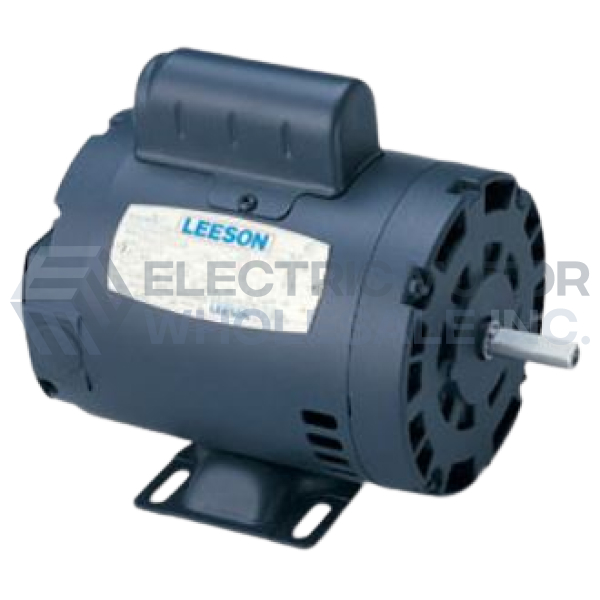

Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 110000.00
Stock # 110000
Price: $260.00
Compare At: $630.00
