3/4HP LEESON 1750RPM 56C TEFC 180VDC STAINLESS WASHDOWN MOTOR 109073.00

3/4HP LEESON 1750RPM 56C TEFC 180VDC STAINLESS WASHDOWN MOTOR 109073.00

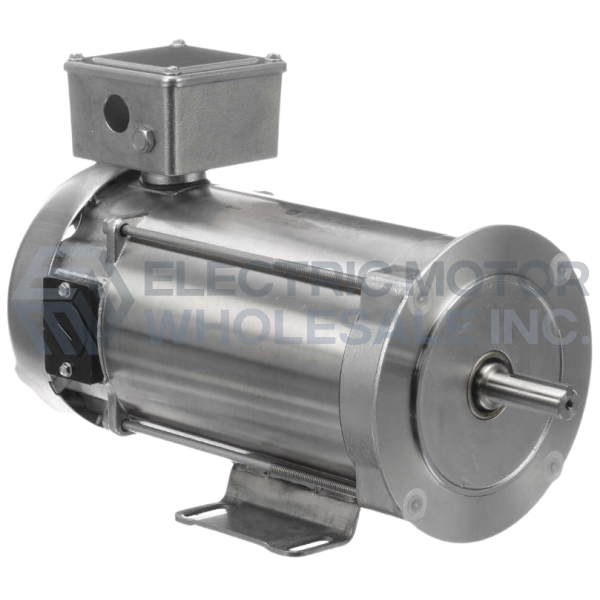

Picture is for reference only.

Part Number:

109073.00

Model/Spec Number:

4D17WK14

Manufacturer:

Leeson Obsolete
109073.00 LEESON 3/4HP Premium Stainless Washdown DC NEMA Frame Motor is designed specifically to meet the demanding sanitation requirements of the pharmaceutical, food processing, and beverage industries.

Item Discontinued

Click below to request an agent review potential options.

Weight:

50 lbs

Dimensions:

11 x 20 x 11 inches

HS Code:

8501.51.4000

UPC:

691720342985

Technical Details

Application:

Stainless Washdown

Output HP:

3/4

Output KW:

0.56

Output RPM:

1750

Frame NEMA:

XS56C

Mount NEMA:

C-Face With Base

Input Voltage DC:

180

Full Load Amps:

3.7

Winding:

Permanent Magnet

Enclosure NEMA:

TEFC

Product Information Packet
