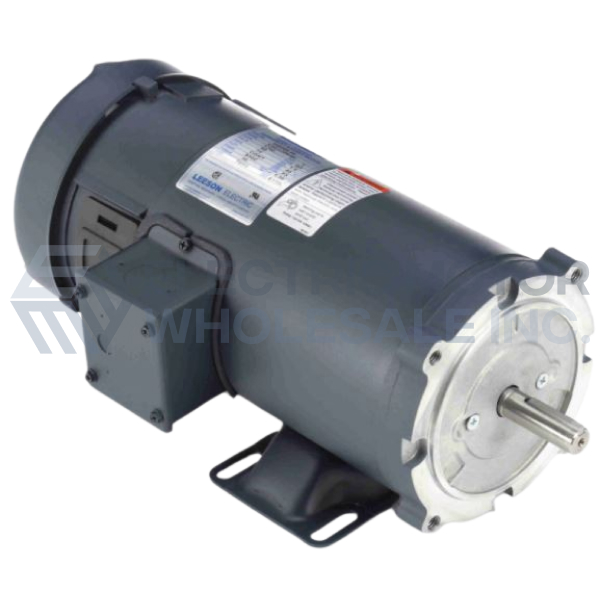

1.5HP LEESON 2500RPM 56C TEFC 180VDC MOTOR 108265.00
|Model Number:||C4D28FK11 E|
|Ship Weight:||46 lbs.|
Mechanical Specifications: Low profile space-saving design. Unique brush holder design provides easy access to brushes and integral constant pressure brush/spring assembly for servicing. Large oversized brushes assure longer brush life. Heavy-duty, stamped steel, bolt-on base (removable). NEMA C face mounting at no additional cost. Rugged die cast aluminum endshields with cast iron bearing inserts. Permanently lubricated sealed ball bearings. May be converted NEMA 48 base using a modification kit.
Electrical Features: Input power of 115 or 230 volts rectified AC when used with an appropriate SCR control. Linear speed/torque characteristics over entire speed range. High starting torque for heavy load applications. Capable of dynamic braking for faster stops. Reversible rotation with simple two-lead connection.
These motors may also be used with PWM (pulse width modulated) type DC adjustable speed drives at a higher HP rating. See chart above for re-rating data.
|Model #||C4D28FK11||Form Factor 2||FLA2|
|Insul Class||H||Enclosure||TEFC||Bearing OPE||6203|
|Motor Wt.||46 LB||Nameplate||081259||Lubrication||POLYREX EM|
|Carton Label||Leeson Gen Purpose|
|Winding||D56225||Ext. Diag.||Ext. Diag2|
|GROUP||1 A||Shaft Dia.||5/8 IN||Packaging||PG659401.04Z|
