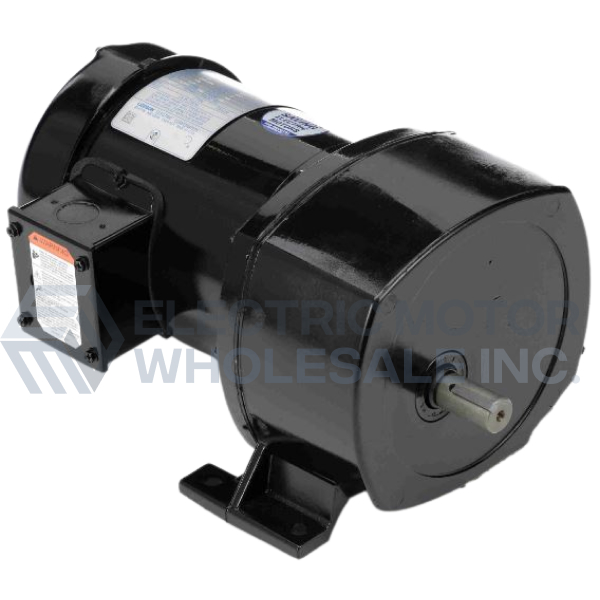

1/2HP LEESON 91RPM TEFC 3PH P1100 PARALLEL GEARMOTOR 107035.00
|Ship Weight:||36 lbs.|
LEESON P1100 Series Three Phase Fractional horsepower 3-Phase AC gearmotors. Totally enclosed for continuous duty, general purpose applications, rated for 60 Hz input. Three phase units suitable for inverter duty and include conduit box.Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support. Precision machined gearing, hardened for maximum load capability. All gearing designed and rated to AGMA Class 9 standards and to withstand momentary shock overload for 200%. Oversized output bearings for greater overhung load capacity and longer life. High-carbon alloy output shaft provides maximum strength and rigidity. All needle bearing journals are precision-ground after heat treating, to provide maximum finish and fit. Single lip, spring loaded, heavy-duty industrial oil seals help keep lubricant in and dirt out. Gears and bearings are splash lubricated with permanent, heavy-duty gear oil
Application Notes: These gearmotors are designed for mounting at any angle, but shaft-up with motor below gearhead is not recommended. P1100 AC gearmotors have the same mounting dimensions as Bison 482 gearmotors and many Dayton gearmotors.
|HPKW||.5||F.L. Amps||F.L. Amps||2/1|
|Frame||48Y||S. F Amps||S. F Amps||2.1/1.05|
|Eff 100%||Eff 75%||Enclosure||TEFC|
|Model #||C4T17FZ51B||Code||K||Bearing PE|
|Series||P1100||Overrlung Ld.||575||Shaft Type||PARALLEL|
|Motor Wt.||36 LB||Mounting||SPECIAL||Rotation||RECONN|
