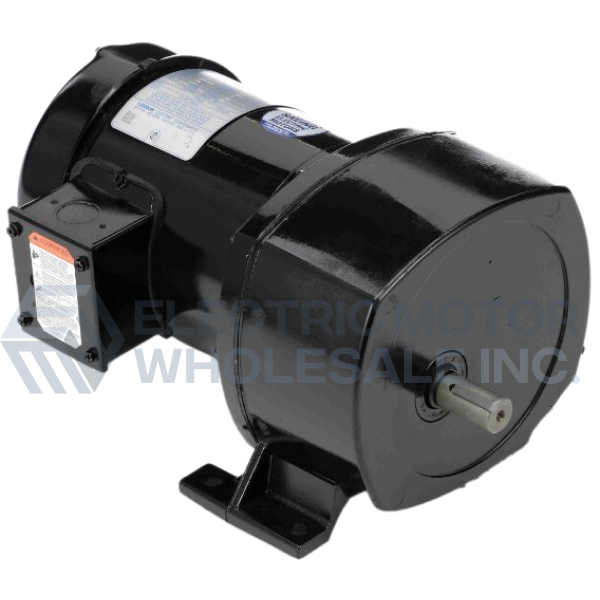

1/3HP LEESON 41RPM TEFC 3PH P1100 SERIES PARALLEL GEARMOTOR 107027.00

1/3HP LEESON 41RPM TEFC 3PH P1100 SERIES PARALLEL GEARMOTOR 107027.00

Picture is for reference only.

Part Number:

107027.00

Model/Spec Number:

4T17FZ54

Manufacturer:

Leeson Obsolete
107027.00 LEESON 1/3HP 41RPM Three Phase P1100 Parallel Gearmotor is designed with precision machined, hardened gearing for maximum life and load capacity.

Item Discontinued

Click below to request an agent review potential options.

Weight:

33 lbs

Dimensions:

18 x 20 x 18 inches

HS Code:

8501.51.4020

UPC:

691720006481

Technical Details

Design:

Parallel Shaft

Input HP:

1/3

Output KW:

0.25

Output RPM@60hz:

41

Gear Ratio:

42:1

Torque Lb-in.@60hz:

461

Overhung Load (lb.):

650

Voltage AC:

208-230/460

Full Load Amp@60hz:

1.6//0.80

Frequency (Hz):

60

Product Information Packet
