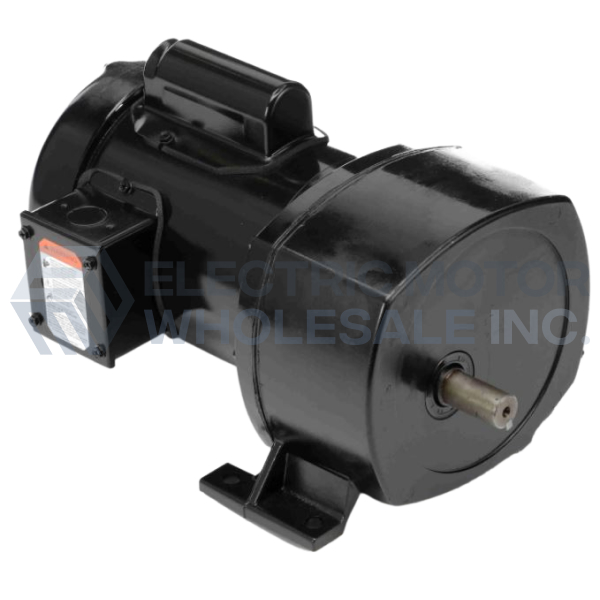

1/2HP LEESON 41RPM 115/230VAC 1PH PARALLEL GEARMOTOR 107017
LEESON 107017.00 1/2HP SUB-FHP AC Single phase gearmotor is totally enclosed for continuous duty and general purpose applications. Permanent split capacitor motors rated for 115/230 VAC, 60/50 hertz input and have starting torque equal to the running torque.
Design Specifications: Fractional horsepower AC gearmotors. Totally enclosed for continuous duty, general purpose applications, rated for 60 Hz input. Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support. Precision machined gearing, hardened for maximum load capability. All gearing designed and rated to AGMA Class 9 standards and to withstand momentary shock overload for 200%. Oversized output bearings for greater overhung load capacity and longer life. High-carbon alloy output shaft provides maximum strength and rigidity. All needle bearing journals are precision-ground after heat treating, to provide maximum finish and fit. Single lip, spring loaded, heavy-duty industrial oil seals help keep lubricant in and dirt out. Gears and bearings are splash lubricated with permanent, heavy-duty gear oil.
Application Notes: These models include conduit box.
LEESON Parallel Gearmotors are designed for mounting at any angle, but shaft-up with motor below gearhead is not recommended. P1100 AC gearmotors have the same mounting dimensions as Bison 482 gearmotors and many Dayton gearmotors.
|HPKW||.5||F.L. Amps||F.L. Amps||8.8/4.4|
|Frame||48Y||S. F Amps||S. F Amps||9.2/4.6|
|Torque lb-in||700||Serv. Factor||1.15||PF|
|Eff 100%||Eff 75%||Enclosure||TEFC|
|Series||P1100||Overrlung Ld.||650||Shaft Type||PARALLEL|
|Motor Wt.||36 LB||Mounting||SPECIAL||Rotation||RECONN|
