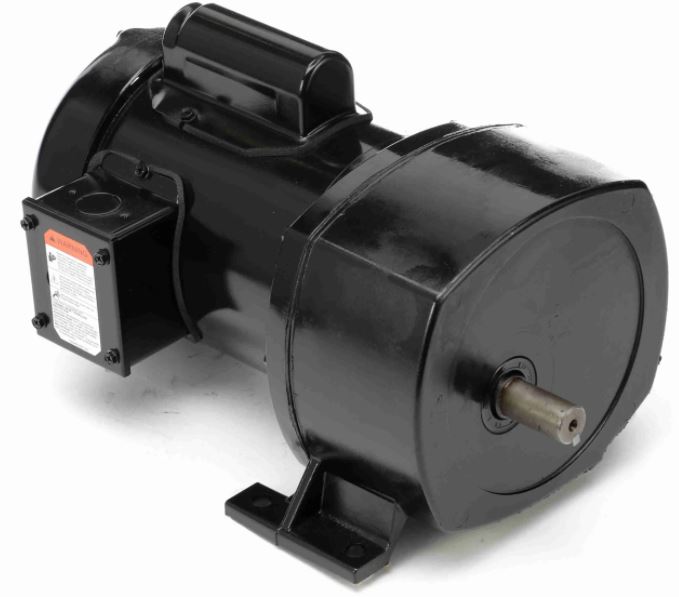

LEESON 107012.00 1/3HP SUB-FHP AC Single phase gearmotor is totally enclosed for continuous duty and general purpose applications. Permanent split capacitor motors rated for 115/230 VAC, 60/50 hertz input and have starting torque equal to the running torque.

Direct Interchange

Design Specifications: Fractional horsepower AC gearmotors. Totally enclosed for continuous duty, general purpose applications, rated for 60 Hz input. Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support. Precision machined gearing, hardened for maximum load capability. All gearing designed and rated to AGMA Class 9 standards and to withstand momentary shock overload for 200%. Oversized output bearings for greater overhung load capacity and longer life. High-carbon alloy output shaft provides maximum strength and rigidity. All needle bearing journals are precision-ground after heat treating, to provide maximum finish and fit. Single lip, spring loaded, heavy-duty industrial oil seals help keep lubricant in and dirt out. Gears and bearings are splash lubricated with permanent, heavy-duty gear oil.

Application Notes: These models include conduit box.
LEESON Parallel Gearmotors are designed for mounting at any angle, but shaft-up with motor below gearhead is not recommended. P1100 AC gearmotors have the same mounting dimensions as Bison 482 gearmotors and many Dayton gearmotors.

RPM 26 Volts   Volts 115/208-230
HPKW .33 F.L. Amps   F.L. Amps 6.2/3.1
Frame 48Y S. F Amps   S. F Amps 6.4/3.2
Max Amb 40 Hertz 60 Phase 1
Insul Class B4 Duty CONT TYPE CF
Torque lb-In 752 Serv. Factor 1.15 PF
Eff 100%   Eff 75%   Enclosure TEFC
Protection NOT Therm.Prot.   Bearing OPE
Model # C4C17FZ36 Code L Bearing PE
UL Yes CSA Yes CE No
Ratio 66:1 Nameplate 080573 Lubrication
Series P1100 Overrlung Ld. 650 Shaft Type PARALLEL
Click Image to Enlarge
Manufacturer Part Number: 107012.00
Stock # 107012
Price: $454.00
Compare At: $1,146.00
