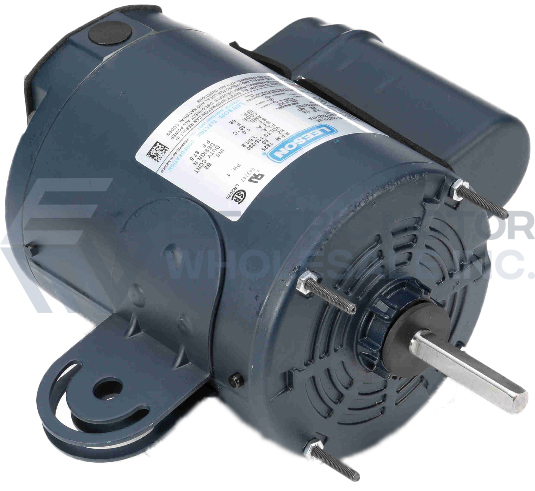

1/3HP LEESON 1075RPM 48Z TEAO 1PH PEDESTAL FAN MOTOR 103717.00

1/3HP LEESON 1075RPM 48Z TEAO 1PH PEDESTAL FAN MOTOR 103717.00


Part Number:

103717.00

Model/Spec Number:

A4P11NZ76A

Manufacturer:

Leeson Obsolete
103717.00 LEESON 1/3HP Single Phase Pedestal Fan Motor is designed for use where the fan is mounted directly to the motor shaft and as a drop in replacement for most belted-fan motors. Heavy gauge steel yoke mount is welded to the motor frame. Extremely quiet running and consumes half the power compared to most standard fan motors.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Free No Rush Shipping

Weight:

25 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.4040

UPC:

691720021781

Technical Details

Application:

HVAC

Output HP:

1/3

Output KW:

0.20-0.29

Output RPM:

1075

Frame NEMA:

48Z

Mount NEMA:

Yoke Mount

Enclosure NEMA:

TEAO

Enclosure IEC:

IP43

Voltage:

115

Frequency (Hz):

60

Product Information Packet
