1/4HP LEESON 1075RPM 48Y TEAO 1PH MOTOR 103713.00

Catalog Number:  103713.00 - FREE Ground Shipping in USA
Model Number:  A4P17NZ119
Description:  1/4HP,1075RPM,48Y,TEAO,1PH,60HZ,PEDESTAL FAN
Ship Weight:  18 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This motor has superseded the previous design.

Please reference drawing for dimensional changes.

LEESON Single Phase Pedestal Fan Motor is designed for use where the fan is mounted directly to the motor shaft and as a drop in replacement for most belted-fan motors. Heavy gauge steel yoke mount is welded to the motor frame. Extremely quiet running and consumes half the power compared to most standard fan motors.

FEATURES:

  • Two-speed two-winding motor
  • Durable rolled steel frame
  • 1/2" Output shaft with two full flats
  • 10-32 mounting studs are extended 1.0" on 5.14" bolt circle
  • Permanent split capacitor type design
  • Actual speed varies depending on load, blade pitch, and voltage
  • Automatic thermal overload protection
  • Electrically reversible
  • UL Recognized and CSA Certified for the US and Canada
  • Non USA Manufactured, MX



Volts 115 Volts   Volts
F.L. Amps 3.2 F.L. Amps   F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1075 Hertz 60
HP 1/4 Duty CONTINUOUS AOM TYPE PN
KW 0.19 Model # A4P11NZ74A
Frame 48Y Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code B
Insul Class B Protection AUT LCK RTR ONLY Therm.Prot. A56227-52
Eff 100%   Eff 75%   PF
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 17 LB Enclosure TEAO Lubrication STANDARD
Nameplate A-92005-187 Mounting SPECIAL Rotation SELECTIVE CCW
Assembly   Shaft Dia.   Ext. Diag. A-005532-01
Cust Part No   Outline A-SS403994LE-525 Ext. Diag2

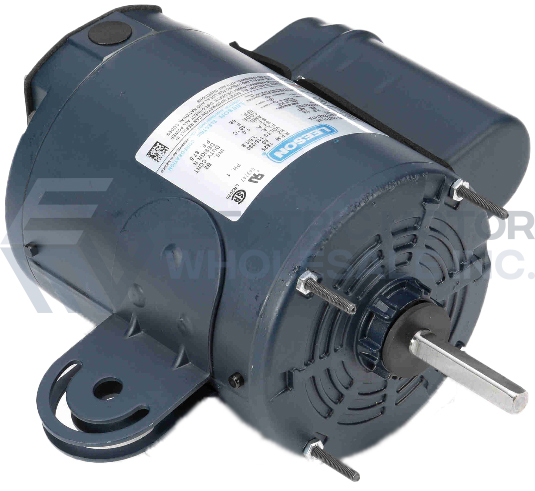

1/4HP LEESON 1075RPM 48Y TEAO 1PH MOTOR 103713.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 103713.00
Stock # 103713
Price: $143.00
Compare At: $357.00
