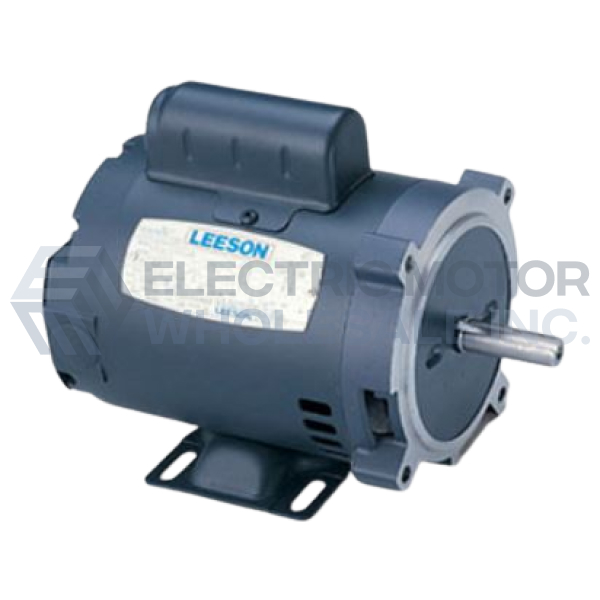

3/4HP LEESON 1725RPM 56C DP 115/208-230V 1PH MOTOR 103086.00

Picture is for reference only.

Part Number:

103086.00

Model/Spec Number:

M4C17DK39A

Manufacturer:

Leeson Obsolete

103086.00 LEESON 3/4HP Single Phase Electric Motor for use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

27 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.40.0000

Technical Details

Specifications

Application:	General Purpose
Output HP:	3/4
Output KW:	.56
Output RPM:	1725
Frame NEMA:	56C
Mount NEMA:	C-Face With Base
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	115/208-230
Frequency (Hz):	60

Documentation

Motor Drawing

Connection Diagram

Additional Information

Volts	115	Volts	208-230	Volts
F.L. Amps	10.8	F.L. Amps	5.3-5.4	F.L. Amps
S. F Amps	12.4	S. F Amps	6.1-6.2	S. F Amps
RPM	1800	Hertz	60
HP	3/4	Duty	CONTINUOUS	TYPE	CD
KW	.56	Model #	M4C17DK39A
Frame	S56C	Serv. Factor	1.25	Phase	1
Max Amb	40	Design	N	Code	K
Insul Class	B	Protection	MANUAL	Therm.Prot.	CEJ53CA
Eff 100%	70	Eff 75%		PF	64
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6203
CC Number	EXEMPT	CE	No	Bearing PE	6203
Load Type		Inverter Type	NONE	Speed Range	NONE
Motor Wt.	27 LB	Enclosure	DP	Lubrication	STANDARD
Nameplate	A-92005-6	Mounting	RIGID	Rotation	SELECTIVE CCW
