1/3HP LEESON 1725RPM 56C DP 3PH WATTSAVER MOTOR 103021.00

LEESON 103021.00 has been superseded by E103021.00

Catalog Number:  103021.00
Description:  1/3HP,1725RPM,56C,DP,3PH,60/50HZ
Ship Weight:  23 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

The WATTSAVER line of premium efficiency motors are now inverter capable. LEESON's unique IRIS voltage-spike-resistant insulation system is standard at no extra cost. WATTSAVER motors carry a three-year warranty in general purpose and inverter fed applications. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.

FEATURES:

  • Premium efficient
  • Steel frame
  • 5/8" shaft output diameter
  • Inverter rated
  • 3 year warranty
  • Non USA Manufactured, MX
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 1.3 F.L. Amps .65 F.L. Amps 1.5/.75
S. F Amps 1.5 S. F Amps .75 S. F Amps 1.7/.85
RPM 1800 Hertz 60/50
HP 1/3 Duty CONTINUOUS TYPE TD
KW .246 Model Number C4T17DK9A
Frame S56C Serv. Factor 1.25 Phase 3
Max Amb 40 Design NO DESIGN CODE Code M
Insul Class F Protection AUTOMATIC Therm.Prot. 7AM035A5
Eff 100% 77 Eff 75%   PF 60
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 23 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-19 Mounting RIGID Rotation REV

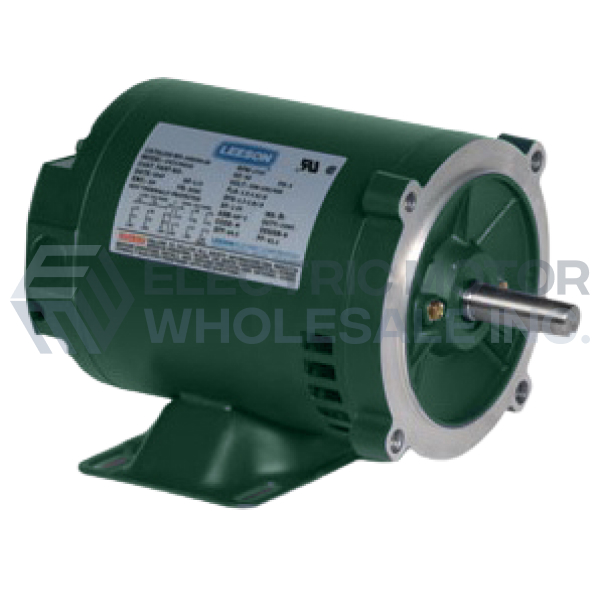

1/3HP LEESON 1725RPM 56C DP 3PH WATTSAVER MOTOR 103021.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 103021.00
Stock # 103021
