1/4HP LEESON 1725RPM 56C DP 3PH MOTOR 103014

LEESON 103014.00 has been superseded by E103014.00

Catalog Number:  103014.00
Description:  1/4HP,1725RPM,56C,DP,3PH,60HZ
Ship Weight:  14 lbs.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 1.4 F.L. Amps .7 F.L. Amps 1.2/.6
S. F Amps 1.6 S. F Amps .8 S. F Amps 1.4/.7
RPM 1800 Hertz 60/50
KW 0.19 Model Number C4T17DC47A
Frame S56C Serv. Factor 1.35 Phase 3
Max Amb 40 Design B Code M
Insul Class B Protection NOT Therm.Prot.
Eff 100% 58 Eff 75%   PF 59
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 14 LB Enclosure DP Lubrication MULTEMP SRL
Nameplate A-92005-4 Mounting ROUND Rotation REV

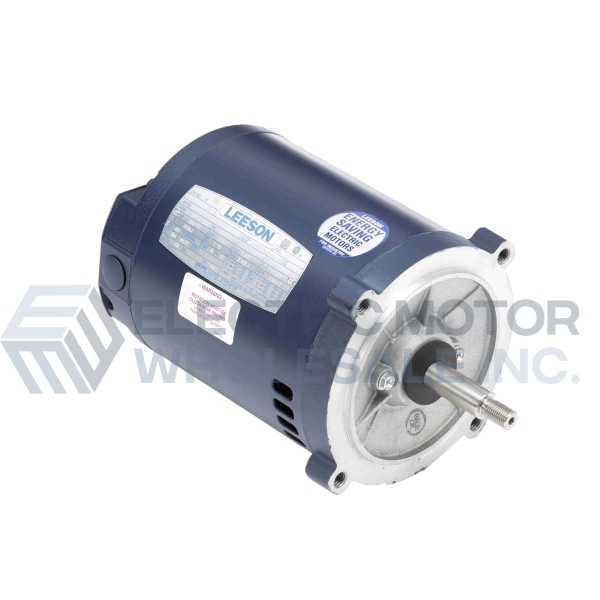

1/4HP LEESON 1725RPM 56C DP 3PH MOTOR 103014
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 103014.00
Stock # 103014
