1/4HP LEESON 1725RPM 48 DP 277VAC 1PH MOTOR 102963.00

Catalog Number:  102963.00 - FREE Ground Shipping in USA
Model Number:  A4C17DR47 B
Description:  1/4HP,1725RPM,48,DP,277VAC,1PH,60HZ
Ship Weight:  17 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

LEESON Single Phase Resilient Base 277VAC HVAC Motor ideally suited for a variety of belt driven fans or fan on shaft applications.

FEATURES:

  • Durable rolled steel frame
  • Industrial quality resilient base
  • 1/2" Keyed output shaft
  • Capacitor start
  • Automatic overload protection
  • Moderate starting torque to reduce machinery stresses
  • UL Recognized and CSA Certified
  • Non USA Manufactured, MX
Volts 277 Volts   Volts
F.L. Amps 2.2 F.L. Amps   F.L. Amps
S. F Amps 2.4 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1/4 Duty CONTINUOUS TYPE CD
KW 0.19 Model # A4C17DR47B
Frame 48 Serv. Factor 1.35 Phase 1
Max Amb 40 Design N Code M
Insul Class B Protection AUTOMATIC Therm.Prot. CEG71GV
Eff 100% 59 Eff 75%   PF 54
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 17 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-21 Mounting RESILIENT BASE Rotation SELECTIVE CCW

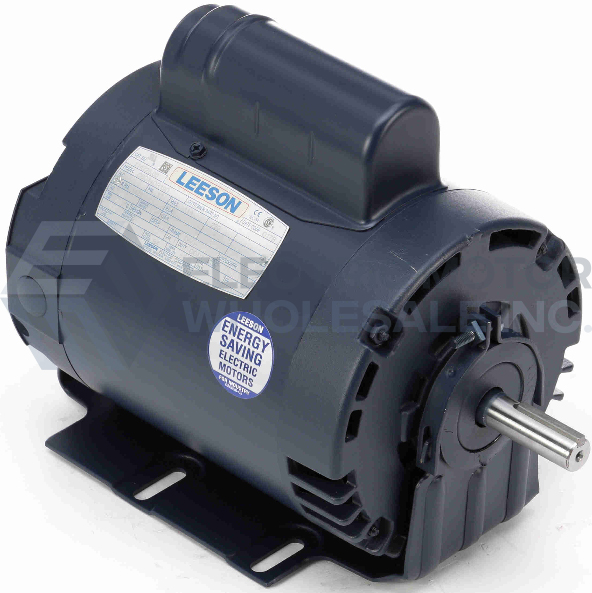

1/4HP LEESON 1725RPM 48 DP 277VAC 1PH MOTOR 102963.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 102963.00
Stock # 102963
Price: $178.00
Compare At: $448.00
