1/4HP LEESON 1725RPM 56 TENV 115/208-230V 1PH MOTOR 102915.00

1/4HP LEESON 1725RPM 56 TENV 115/208-230V 1PH MOTOR 102915.00

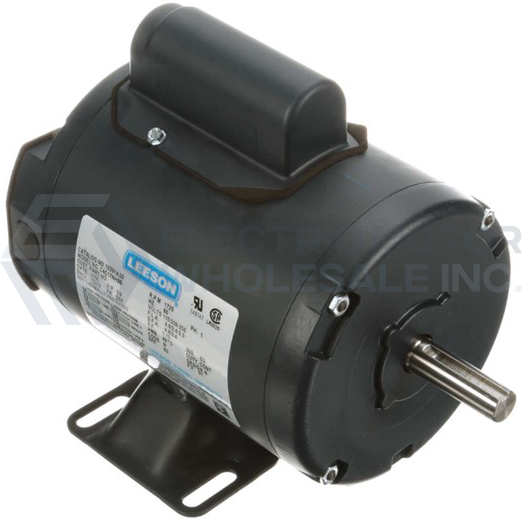

TENV 56 FRAME WITH BASE.jpg
Picture is for reference only.

Part Number:

102915.00

Model/Spec Number:

A4C17NH10B

Manufacturer:

Leeson Obsolete
102915.00 LEESON 1/4HP Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and mild corrosives. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Item Discontinued

Click below to request an agent review potential options.

Weight:

15 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.4040

UPC:

691720334713

Technical Details

Application:

General Purpose

Output HP:

1/4

Output KW:

0.18

Output RPM:

1725

Frame NEMA:

S56

Mount NEMA:

Base Mount

Enclosure NEMA:

TENV

Enclosure IEC:

IP43

Voltage:

115/208-230

Frequency (Hz):

60
