1/3HP LEESON 1725RPM 56 TENV 1PH MOTOR 102913.00

Catalog Number:  102913.00 - FREE Ground Shipping in USA
Model Number:  M4C17NH8 B
Description:  1/3HP,1725RPM,56,TENV,1PH,60HZ
Ship Weight:  20 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

LEESON Single Phase General Purpose Motor For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Durable rolled steel frame
  • 5/8" Keyed output shaft
  • Manual Overload Protection
  • Double-shielded ball bearings
  • Capacitor Start
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 5.2 F.L. Amps 2.6 F.L. Amps
S. F Amps 5.8 S. F Amps 2.9 S. F Amps
RPM 1800 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE CN
KW 0.25 Model Number M4C17NH8B
Frame S56 Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code J
Insul Class F Protection MANUAL Therm.Prot. CEG67GB
Eff 100% 65 Eff 75%   PF 63
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 20 LB Enclosure TENV Lubrication STANDARD
Nameplate A-92005-6 Mounting RIGID Rotation SELECTIVE CCW

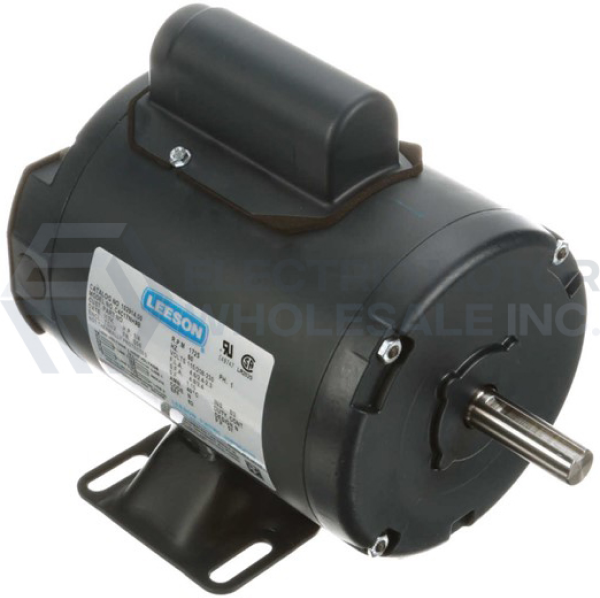

1/3HP LEESON 1725RPM 56 TENV 1PH MOTOR 102913.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 102913.00
Stock # 102913
Price: $218.00
Compare At: $548.00
