1/2HP LEESON 1725RPM 56C TEFC 1PH MOTOR 102871.00

Catalog Number:  102871.00
Model Number:  A4C17FC35B
Description:  1/2HP,1725RPM,56C,TEFC,1PH,60HZ
Ship Weight:  25 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.


  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • Automatic overload protection
  • High-quality ball bearings
  • Capacitor start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 8 F.L. Amps 3.8-4 F.L. Amps
S. F Amps 8.4 S. F Amps 4.1-4.2 S. F Amps
RPM 1800 Hertz 60
KW 0.37 Model Number A4C17FC35B
Frame S56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design O Code L
Insul Class F Protection AUTOMATIC Therm.Prot. CEJ63CV
Eff 100% 66 Eff 75%   PF 61
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number NONE CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 25 LB Enclosure TEFC Lubrication STANDARD
Nameplate A-92005-6 Mounting ROUND Rotation SELECTIVE CCW

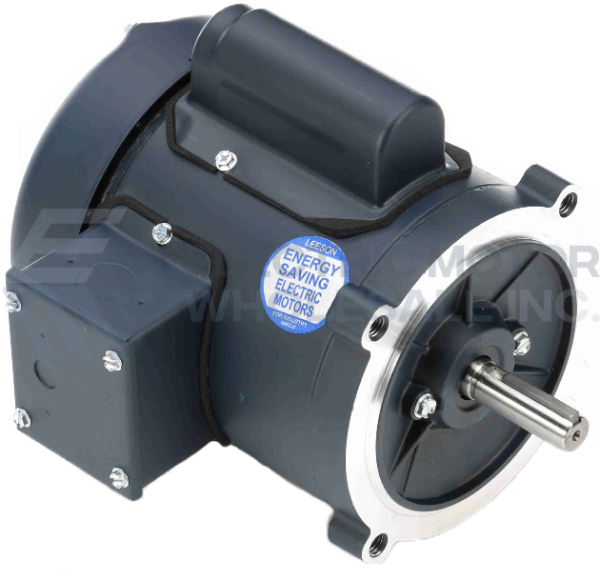

1/2HP LEESON 1725RPM 56C TEFC 1PH MOTOR 102871.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 102871.00
Stock # 102871
Price: $225.00
Compare At: $567.00
