1/3HP LEESON 3450RPM 56C TEFC 115/208-230V 1PH MOTOR 102870.00

1/3HP LEESON 3450RPM 56C TEFC 115/208-230V 1PH MOTOR 102870.00

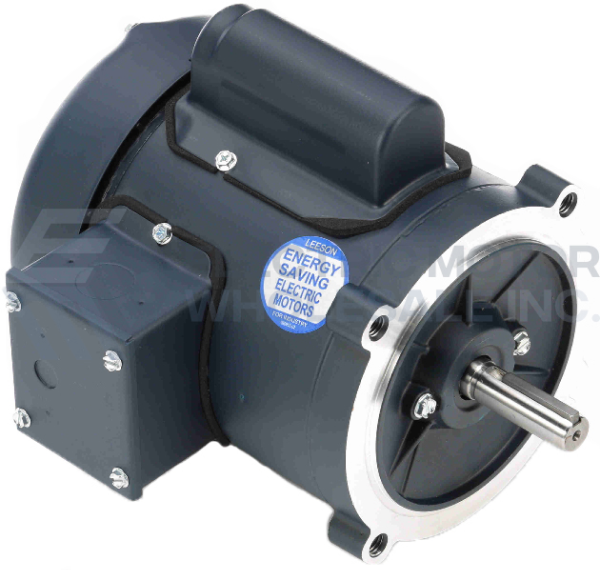

TEFC 56C NO BASE CAP START.png
Picture is for reference only.

Part Number:

102870.00

Model/Spec Number:

C4C34FC13

Manufacturer:

Leeson Obsolete
102870.00 LEESON 1/3HP Single Phase Electric Motor for use where water, dust and dirt exposure exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

22 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.4040

UPC:

691720326503

Technical Details

Application:

General Purpose

Output HP:

1/3

Output KW:

0.25

Output RPM:

3450

Frame NEMA:

S56C

Mount NEMA:

C-Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet
