1/3HP LEESON 1725RPM 48CZ TEFC 1PH MOTOR 102663.00
| Catalog Number: | 102663.00 |
| Model Number: | C4C17FC26C |
| Description: | 1/3HP,1725RPM,48CZ,TEFC,1PH,60HZ |
| Ship Weight: | 22 lbs. |
APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.
FEATURES:
- Durable rolled steel frame
- 1/2" shaft output diameter
- High-quality ball bearings
- Capacitor start
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval
- Non USA Manufactured, MX
- 1 year warranty
| Volts | 115 | Volts | 208-230 | Volts | |
| F.L. Amps | 6.6 | F.L. Amps | 2.9-3.3 | F.L. Amps | |
| S. F Amps | 6.8 | S. F Amps | 3.0-3.4 | S. F Amps | |
| RPM | 1800 | Hertz | 60 | ||
| HP | 1/3 | Duty | CONTINUOUS | TYPE | CF |
| KW | .246 | Model Number | C4C17FC26C | ||
| Frame | 48CZ | Serv. Factor | 1.15 | Phase | 1 |
| Max Amb | 40 | Design | N | Code | L |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 61 | Eff 75% | PF | 59 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | EXEMPT | CE | No | Bearing PE | 6203 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 22 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | Mounting | ROUND | Rotation | SELECTIVE CCW |

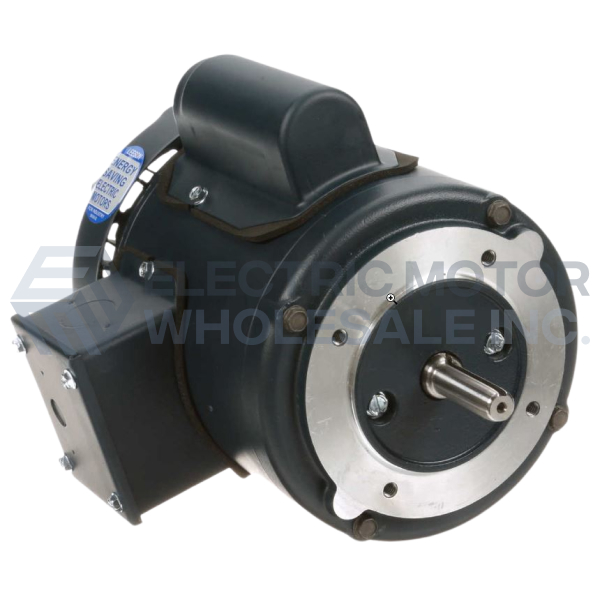

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 102663.00
