1/2HP LEESON 1725RPM 56C DP 3PH WATTSAVER MOTOR 102200.00

LEESON 102200.00 has been superseded by E119352.00

Catalog Number:  102200.00
Model Number:  C4T17DC45
Description:  1/2HP,1725RPM,56C,DP,3PH,60/50HZ,WATTSAVER
Ship Weight:  21 lbs.

LEESON WATTSAVER line of premium efficiency motors are now inverter capable. LEESON's unique IRIS voltage-spike -resistant insulation system is standard at no extra cost. WATTSAVER motors carry a three-year warranty in general purpose and inverter fed applications. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.

FEATURES:

  • Steel frame
  • 5/8" shaft output diameter
  • Standard efficiency with 1 year warranty
  • Class B insulation systems
  • Inverter rated
  • Nameplated for 50 Hz operation
  • Non USA Manufactured, MX
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 1.8-1.8 F.L. Amps .9 F.L. Amps 2/1
S. F Amps 2-2 S. F Amps 1 S. F Amps 2.2/1.1
RPM 1800 Hertz 60/50
HP 1/2 Duty CONTINUOUS TYPE TD
KW 0.37 Model Number C4T17DC39C
Frame S56 C Serv. Factor 1.25 Phase 3
Max Amb 40 Design NO DESIGN CODE Code M
Insul Class F Protection AUTOMATIC Therm.Prot. 7AM035A5
Eff 100% 77 Eff 75%   PF 69
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 21 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-19 Mounting ROUND Rotation REV

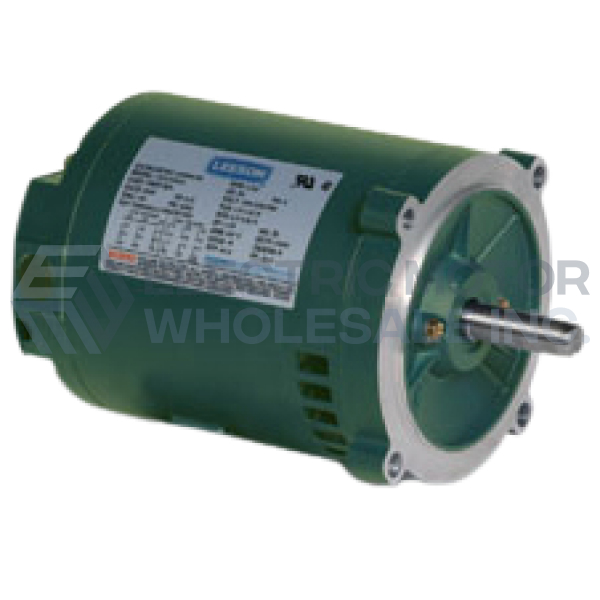

1/2HP LEESON 1725RPM 56C DP 3PH WATTSAVER MOTOR 102200.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 102200.00
Stock # 102200
