1/2HP LEESON 1725RPM 48YZ TEFC 1PH 50HZ MOTOR 101643.00

Catalog Number:  101643.00
Model Number:  M4C14FZ5J
Description:  1/2HP,1725RPM,48YZ,TEFC,1PH,50HZ
Ship Weight:  29 lbs.

LEESON FEED-AUGER DRIVE MOTOR, Dust-tight, capacitor start motor with your choice of field proven electronc or protected mechanical starting switch--both eliminate damage caused when motor is over-speeded by obstructed auger. Ball-bearing, heavy duty industrial quality designs for high overload capacity. Side mounted conduit box. Flange mounts directly to drive assembly. Fully gasketed to keep out feed dust. Has screw driver slot in rear shaft. Continuous duty, with manual thermal overload protection.


  • Shaft is 1/2” Dia. X 1 1/2” long with flat
  • Mechanical centrifugal starting switch with overspeed protection, others have electronic start switch
  • Manual overload protected
  • Non USA Manufactured, MX
Volts 110 Volts 220 Volts
F.L. Amps 8 F.L. Amps 4 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1500 Hertz 50
KW 0.37 Model Number M4C14FZ5J
Frame 48YZ Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code J
Insul Class B Protection MANUAL Therm.Prot. CEJ64CA
Eff 100% 64 Eff 75%   PF 65
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 29 LB Enclosure TEFC Lubrication STANDARD
Nameplate A-92005-6 Mounting SPECIAL Rotation SELECTIVE CCW

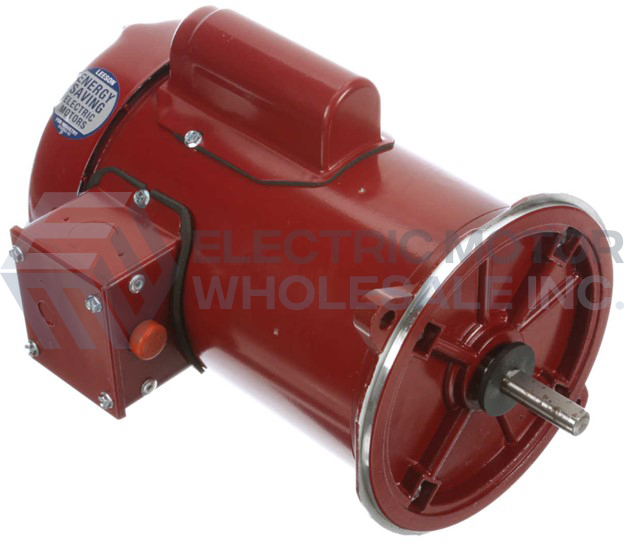

1/2HP LEESON 1725RPM 48YZ TEFC 1PH 50HZ MOTOR 101643.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 101643.00
Stock # 101643
Price: $316.00
Compare At: $869.00
