1HP LEESON 3450RPM 56J DP 3PH MOTOR 101638

Catalog Number:  101638.00 - FREE Ground Shipping in USA
Model Number:  C4T34DC21
Description:  1HP,3450RPM,56J,DP,3PH,60HZ
Ship Weight:  25 lbs.

Three Phase DP Jet Pump Motor for industrial or commercial use.

FEATURES:

  • Made in the USA
  • Steel frame
  • NEMA 56 C face mounting flange, no base
  • Threaded shafts made of 303 grade stainless steel
  • CCW rotation facing lead end
  • Quiet flow-through ventilation system
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft end bearings
  • UL recognized and CSA certified
Volts 230   Volts 460   Volts 190/380
FL Amps 3   FL Amps 1.5   FL Amps 2.6/1.3
SF Amps 3.8   SF Amps 1.9   SF Amps 2.8/1.4
RPM 3600   Hertz 60/50
HP 1   Duty CONTINUOUS   Type TD
KW .75   SF 1.15   Phase 3
Frame S56J   Design NO DESIGN CODE   KVA Code L
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class B   Eff(75%)     PF 83
Eff(100%) 78   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE N   Bearing PE 6203
CC Number EXEMPT   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 25 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 004002   Mounting ROUND   Rotation REV
Shaft Diam. 5/8 IN   Cust Part No.     Packaging B
      Winding T55222   Carton Label Leeson Pump
      Group 3   Iris
Paint BLUE - LEESON (ENAMEL)   Hazardous Location NONE   Test Card 02

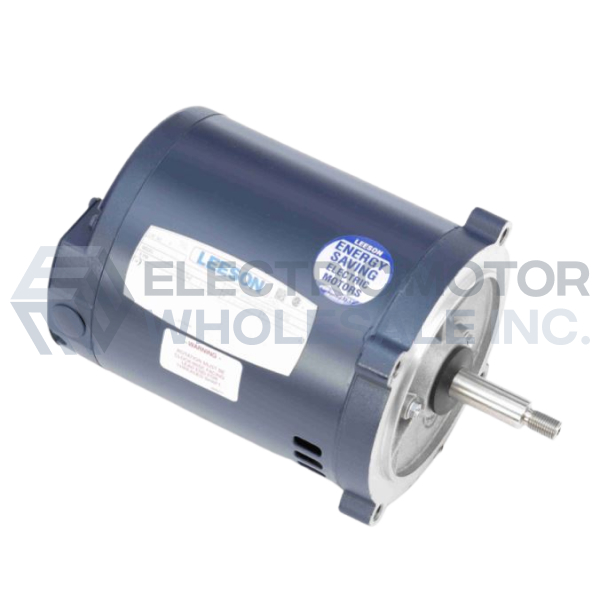

1HP LEESON 3450RPM 56J DP 3PH MOTOR 101638
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 101638.00
Stock # 101638
Price: $222.00
Compare At: $581.00
