1/2HP LEESON 1725RPM 48 DP 1PH MOTOR 101611.00

Catalog Number:  101611.00
Model Number:  A4C17DJ57F
Description:  1/2HP,1725RPM,48,DP,1PH,60HZ
Ship Weight:  25 lbs.

APPLICATIONS: Industrial quality, resilient (cradle) mounted, capacitor start-type, ball bearing motors for fan and blower service. Moderate starting torque electrical design to reduce stress on fan blades during start-up. Capacitor-type design has higher energy efficiency rating than split phase, single phase fan and blower motors. Suitable for belt-driven fans or fan-or-shaft applications. Self-ventilated design, may be mounted outside of the fan's airflow.

FEATURES:

  • 5/8" shaft output diameter
  • Drip-proof and totally enclosed designs
  • Industrial quality, resilient (cradle) mounted
  • Capacitor start-type
  • With terminal board
  • Ball bearing designs
  • Moderate starting torque to reduce machinery stresses
  • Suitable for belt-driven fans or fan-on-shaft applications
  • Non USA Manufactured, MX
Volts 115 Volts 208-230 Volts
F.L. Amps 8.8 F.L. Amps 4-4.4 F.L. Amps
S. F Amps 9.8 S. F Amps 4.6-4.9 S. F Amps
RPM 1800 Hertz 60
HP 1/2 Duty CONTINUOUS TYPE CD
KW 0.37 Model # A4C17DJ57F
Frame S56 Serv. Factor 1.25 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection AUTOMATIC Therm.Prot. CEG65GV
Eff 100% 62 Eff 75%   PF 60
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 25 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-70 Mounting RESILIENT BASE Rotation SELECTIVE CCW

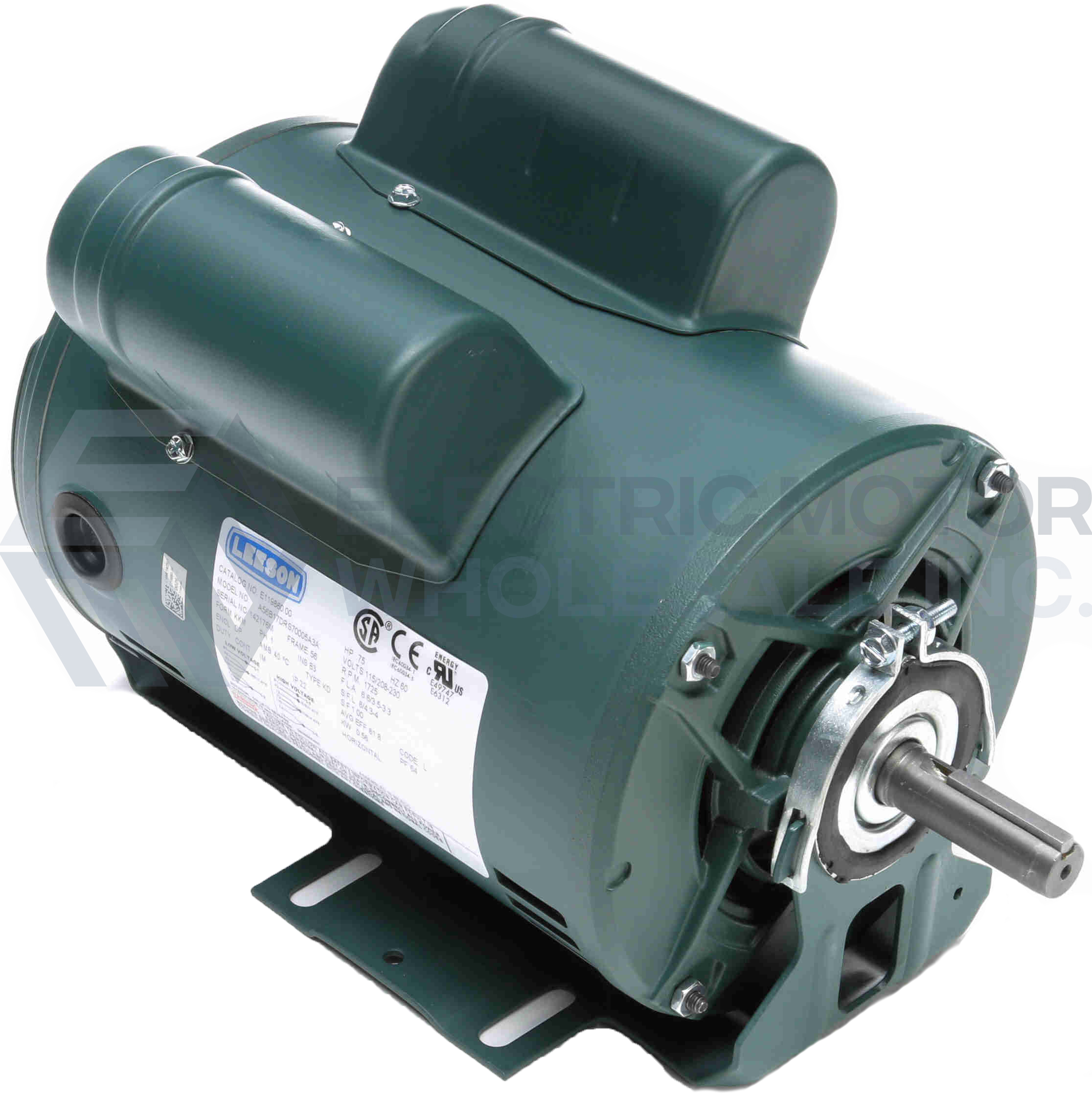

1/2HP LEESON 1725RPM 48 DP 1PH MOTOR 101611.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 101611.00
Stock # 101611
Price: $233.00
Compare At: $588.00
