3/4HP LEESON 1725RPM 56C DP 1PH MOTOR 101523.00

Catalog Number:  101523.00
Model Number:  A4C17DC80H
Description:  3/4HP,1725RPM,56C,DP,1PH,60HZ
Ship Weight:  29 lbs.

APPLICATIONS: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

FEATURES:

  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • Automatic overload protection
  • High-quality ball bearings
  • Capacitor Start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 10.8 F.L. Amps 5.3-5.4 F.L. Amps
S. F Amps 12.4 S. F Amps 6.1-6.2 S. F Amps
RPM 1800 Hertz 60
HP 3/4 Duty CONTINUOUS TYPE CD
KW 0.56 Model # A4C17DC80H
Frame S56C Serv. Factor 1.25 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection AUTOMATIC Therm.Prot. CEJ53CV
Eff 100% 70 Eff 75%   PF 64
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 29 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-6 Mounting ROUND Rotation SELECTIVE CCW

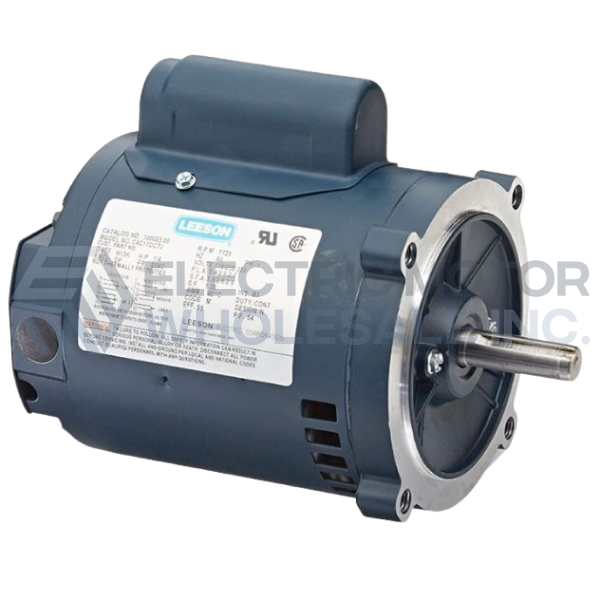

3/4HP LEESON 1725RPM 56C DP 1PH MOTOR 101523.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 101523.00
Stock # 101523
