3/4HP LEESON 1725RPM 48YZ TEFC 1PH MOTOR 101437.00

Catalog Number:  101437.00
Model Number:  M4C17FZ18H
Description:  3/4HP,1725RPM,48YZ,TEFC,1PH,60HZ
Ship Weight:  31 lbs.

LEESON FEED-AUGER DRIVE MOTOR, Dust-tight, capacitor start motor with your choice of field proven electronc or protected mechanical starting switch--both eliminate damage caused when motor is over-speeded by obstructed auger. Ball-bearing, heavy duty industrial quality designs for high overload capacity. Side mounted conduit box. Flange mounts directly to drive assembly. Fully gasketed to keep out feed dust. Has screw driver slot in rear shaft. Continuous duty, with manual thermal overload protection.

FEATURES:

  • Choice of mechanical or solid state starting switch
  • Mechanical switch has over-speed protection
  • Manual overload protected
Volts 115 Volts 208-230 Volts
F.L. Amps 10.8 F.L. Amps 5.3-5.4 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 3/4 Duty CONTINUOUS TYPE CF
KW 0.56 Model Number M4C17FZ18H
Frame 48YZ Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code K
Insul Class F Protection MANUAL Therm.Prot. CEJ65CA
Eff 100% 70 Eff 75%   PF 64
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 31 LB Enclosure TEFC Lubrication STANDARD
Nameplate A-92005-6 Mounting SPECIAL Rotation SELECTIVE CCW

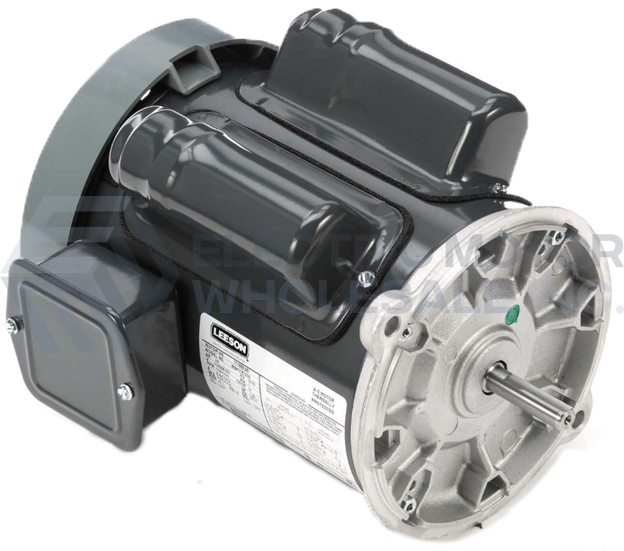

3/4HP LEESON 1725RPM 48YZ TEFC 1PH MOTOR 101437.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 101437.00
