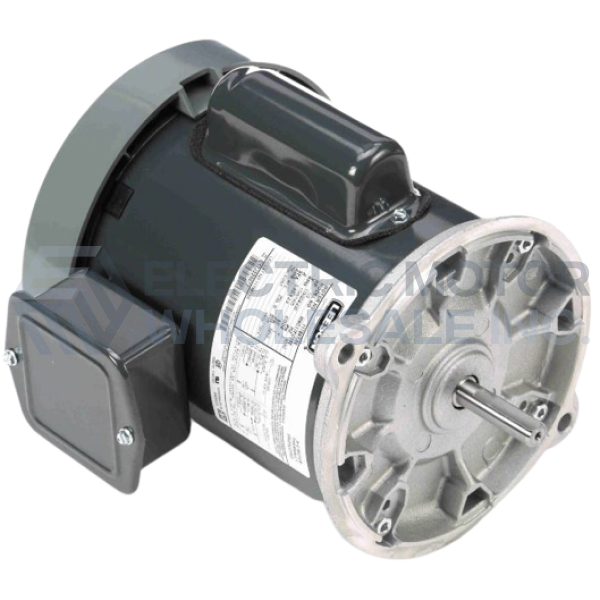

1/3HP LEESON 1725RPM 48YZ TEFC 1PH FEED-AUGER DRIVE MOTOR 101435.00

1/3HP LEESON 1725RPM 48YZ TEFC 1PH FEED-AUGER DRIVE MOTOR 101435.00

Picture is for reference only.

Part Number:

101435.00

Manufacturer:

Leeson Obsolete
101435.00 LEESON 1/3HP SINGLE PHASE FEED-AUGER DRIVE MOTOR Dust-tight, capacitor start motor with your choice of field proven electronic or protected mechanical starting switch--both eliminate damage caused when motor is over-speeded by obstructed auger.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

26 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.4040

Technical Details

Application:

Feed-Auger Drive

Output HP:

1/3

Output KW:

0.25

Output RPM:

1725

Frame NEMA:

48YZ

Mount NEMA:

C-Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

115/230

Frequency (Hz):

60

Motor Drawing

Connection Diagram
