1/3HP LEESON 3450RPM 48 DP 1PH MOTOR 101431.00

Catalog Number:  101431.00
Model Number:  A4C34DR11E
Description:  1/3HP,3450RPM,48,DP,1PH,60HZ
Ship Weight:  20 lbs.

APPLICATIONS: Industrial quality, resilient (cradle) mounted, capacitor start-type, ball bearing motors for fan and blower service. Moderate starting torque electrical design to reduce stress on fan blades during start-up. Capacitor-type design has higher energy efficiency rating than split phase, single phase fan and blower motors. Suitable for belt-driven fans or fan-or-shaft applications. Self-ventilated design, may be mounted outside of the fan's airflow.

FEATURES:

  • 1/2" shaft output diameter
  • Drip-proof and totally enclosed designs
  • Industrial quality, resilient (cradle) mounted
  • Capacitor start-type
  • Ball bearing designs
  • Moderate starting torque to reduce machinery stresses
  • Suitable for belt-driven fans or fan-on-shaft applications
  • Non USA Manufactured, MX
Volts 115 Volts 208-230 Volts
F.L. Amps 4.6 F.L. Amps 2.1-2.3 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE CD
KW 0.25 Model # A4C34DR11E
Frame 48 Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection AUTOMATIC Therm.Prot. CEG73GV
Eff 100% 69 Eff 75%   PF 73
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE   Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 20 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-6 Mounting RESILIENT BASE Rotation SELECTIVE CCW

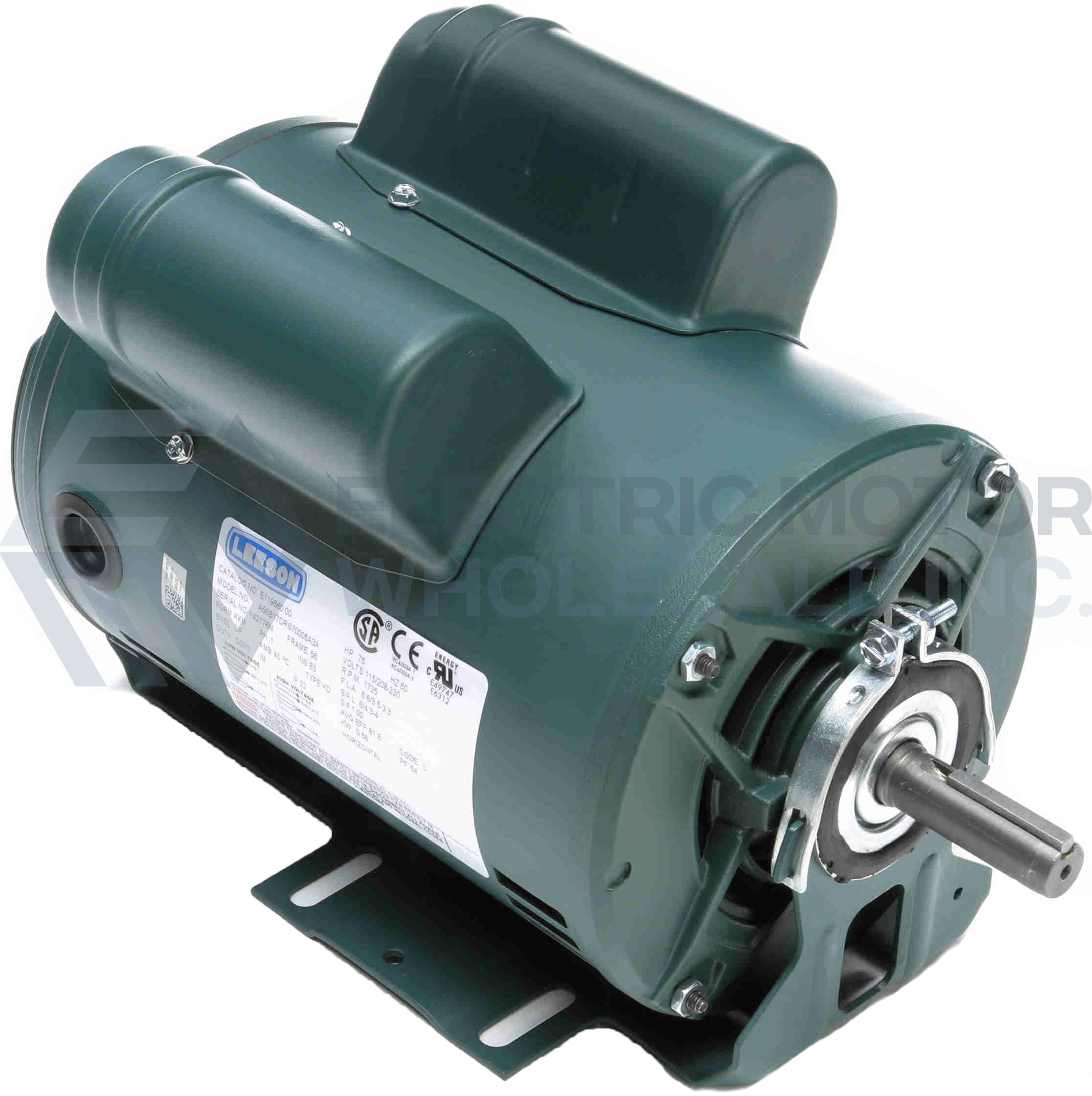

1/3HP LEESON 3450RPM 48 DP 1PH MOTOR 101431.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 101431.00
Stock # 101431
Price: $147.00
Compare At: $371.00
