1/3HP LEESON 1725RPM 56H DP 1PH MOTOR 101021.00

Catalog Number:  101021.00
Model Number:  C4S46DJ1G
Description:  1/3-0.15HP,1725/1140RPM,56H,DP,1PH
Ship Weight:  29 lbs.

APPLICATIONS: Industrial quality, resilient (cradle) mounted, are suited for belted or fan on shaft applications. Self ventilated and may be mounted within or outside of the driven fan's air stream.

FEATURES:

  • Steel frame
  • 5/8" shaft output diameter
  • Belted or fan-on-shaft applications
  • Can be mounted within or outside the fan’s airstream
  • Resilient mounted for quiet operation
  • 3/4 HP and larger single phase are capacitor start motors; smaller single phase are split phase start.
  • Ball bearings
  • Non USA Manufactured, MX
Volts 115 Volts   Volts 115
F.L. Amps 5 F.L. Amps   F.L. Amps 4.6
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60/60
HP 1/3 Duty CONTINUOUS TYPE SD
KW .246 Model # C4S46DJ1G
Frame S56H Serv. Factor 1.0 Phase 1
Max Amb 40 Design 2VT Code P
Insul Class B Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 29 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-105 Mounting RESILIENT BASE Rotation SELECTIVE CCW

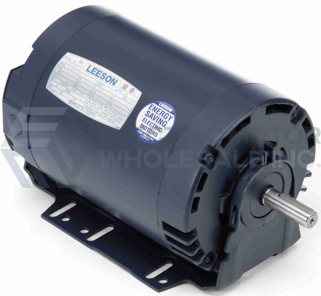

1/3HP LEESON 1725RPM 56H DP 1PH MOTOR 101021.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 101021.00
Stock # 101021
Price: $239.00
Compare At: $603.00
