1/4-1/12HP LEESON 1725RPM 48Z ODP 1PH MOTOR 101020.00

1/4-1/12HP LEESON 1725RPM 48Z ODP 1PH MOTOR 101020.00

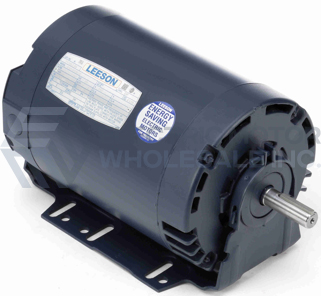

split phase.jpg

Part Number:

101020.00

Model/Spec Number:

C4S46DR1J

Manufacturer:

Leeson Obsolete
101020.00 LEESON 1/4-1/12HP Single Phase Variable Torque Two-Speed Resilient Base Motor suited for belted or fan on shaft applications. Self ventilated and may be mounted within or outside of the driven fan's air stream.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

28 lbs

Dimensions:

10 x 15 x 10 inches

HS Code:

8501.40.4040

UPC:

691720005262

Technical Details

Application:

HVAC

Output HP:

1/4, 1/12

Output KW:

0.19

Output RPM:

1725, 1150

Frame NEMA:

48Z

Mount NEMA:

Resilient Base

Enclosure NEMA:

ODP

Enclosure IEC:

IP22

Voltage:

115

Frequency (Hz):

60
