1/4HP LEESON 1625RPM 48Z TEAO 1PH MOTOR 100803.00

Catalog Number:  100803.00 - FREE Ground Shipping in USA
Model Number:  A4P17NR1 H
Description:  1/4HP,1625RPM,48Z,TEAO,1PH,60HZ
Ship Weight:  19 lbs.

LEESON Single Phase PSC Variable Torque Fan Motor is designed for dependable performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch, resulting in higher reliability than  other types of single phase motors. This design is also more energy efficient and less expensive to operate.

FEATURES:

  • Durable rolled steel frame with corrosion resistant epoxy paint
  • Resilient base for quiet operation
  • 1” long extended through-bolts
  • 2-1/4” long by 1/2” diameter output shaft with flat
  • Overload protected with a UL and CSA recognized automatic reset protector
  • Must be mounted within the air stream of the driven fan
  • Because of the low starting torques of this design, these motors are not suitable for belt driven fan applications
  • Non USA Manufactured, MX
Volts 115 Volts 230 Volts
F.L. Amps 2.8 F.L. Amps 1.4 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1625 Hertz 60
HP 1/4 Duty AIROVER TYPE PN
KW 0.19 Model # A4P17NR1H
Frame 48Z Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code D
Insul Class B Protection AUTOMATIC Therm.Prot. 7AM035A5
Eff 100% 70 Eff 75%   PF 87
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE   Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 22 LB Enclosure TENV Lubrication STANDARD
Nameplate A-92005-6 Mounting RESILIENT BASE Rotation SELECTIVE CCW

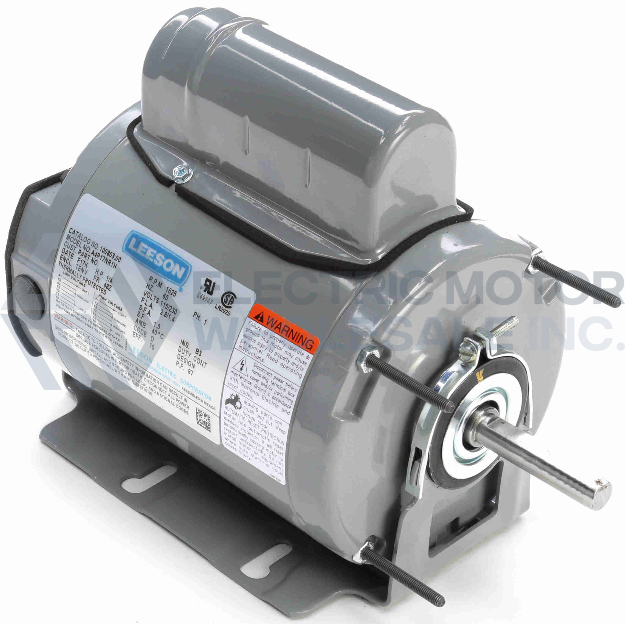

1/4HP LEESON 1625RPM 48Z TEAO 1PH MOTOR 100803.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 100803.00
Stock # 100803
Price: $150.00
Compare At: $441.00
