1/4HP LEESON 1625RPM 48YZ TEAO 1PH MOTOR 100699.00

Catalog Number:  100699.00 - FREE Ground Shipping in USA
Model Number:  A4P17NB7 J
Description:  1/4HP,1625RPM,48YZ,TEAO,1PH,60HZ
Ship Weight:  19 lbs.

LEESON Single Phase PSC Variable Torque Fan Motor is designed for dependable performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch, resulting in higher reliability than other types of single phase motors. This design is also more energy efficient and less expensive to operate.


  • Rolled steel frame with corrosion resistant epoxy paint
  • Rigid base
  • 2-1/2" long by 1/2" output shaft with full flat and slinger
  • 1" long extended thrubolts
  • Overload protected with a UL and CSA recognized automatic reset protector
  • Must be mounted within the air stream of the driven fan
  • Because of the low starting torques of this design, these motors are not suitable for belt driven fan applications
  • Non USA Manufactured, MX
Volts 115 Volts 230 Volts
F.L. Amps 2.8 F.L. Amps 1.4 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1625 Hertz 60
KW 0.19 Model # A4P17NB7J
Frame 48Y Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code D
Insul Class B Protection AUTOMATIC Therm.Prot. 7AM035A5
Eff 100% 70 Eff 75%   PF 87
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE   Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 16 LB Enclosure TENV Lubrication STANDARD
Nameplate A-92005-6 Mounting RIGID Rotation SELECTIVE CCW

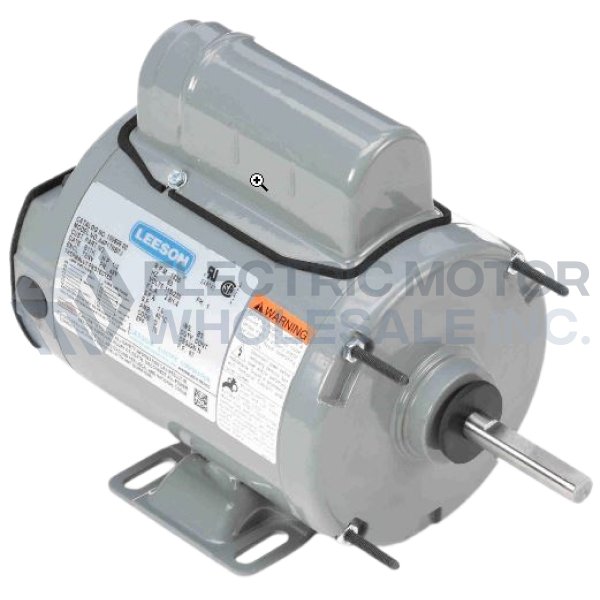

1/4HP LEESON 1625RPM 48YZ TEAO 1PH MOTOR 100699.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 100699.00
Stock # 100699
