1/3HP LEESON 1725RPM 56C DP 3PH MOTOR 100599.00

LEESON 100599.00 has been superseded by E103021.00

Catalog Number:  100599.00
Model Number:  C4T17DK1E
Description:  1/3HP,1725RPM,56C,DP,3PH,60HZ
Ship Weight:  21 lbs.
Volts 208-230 Volts 460 Volts
F.L. Amps 1.5-1.6 F.L. Amps .8 F.L. Amps
S. F Amps 1.7-1.8 S. F Amps .9 S. F Amps
RPM 1800 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE TD
KW .25 Model Number C4T17DK1E
Frame S56C Serv. Factor 1.35 Phase 3
Max Amb 40 Design B Code M
Insul Class B Protection NOT Therm.Prot.
Eff 100% 64.3 Eff 75%   PF 61.1
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE   Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 21 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-4 Mounting RIGID Rotation REV

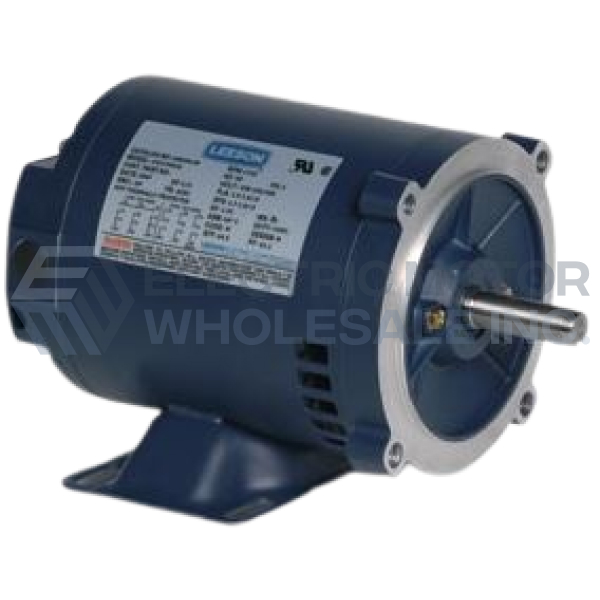

1/3HP LEESON 1725RPM 56C DP 3PH MOTOR 100599.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 100599.00
Stock # 100599
