3/4HP LEESON 3450RPM 56C DP 1PH MOTOR 100357.00
LEESON 100357.00 has been superseded by E100357.00
| Catalog Number: | 100357.00 |
| Model Number: | C4C34DC14G |
| Description: | 3/4HP,3450RPM,56C,DP,1PH,60HZ |
| Ship Weight: | 23 lbs. |
APPLICATIONS: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.
FEATURES:
- Durable rolled steel frame
- 5/8" shaft output diameter
- High-quality ball bearings
- Capacitor Start
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval
- Non USA Manufactured, MX
- 1 year warranty
| Volts | 115 | Volts | 208-230 | Volts | |
| F.L. Amps | 9.8 | F.L. Amps | 4.8-4.9 | F.L. Amps | |
| S. F Amps | 11 | S. F Amps | 5.4-5.5 | S. F Amps | |
| RPM | 3600 | Hertz | 60 | ||
| HP | 3/4 | Duty | CONTINUOUS | TYPE | CD |
| KW | 0.56 | Model # | C4C34DC14G | ||
| Frame | S56C | Serv. Factor | 1.25 | Phase | 1 |
| Max Amb | 40 | Design | N | Code | K |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 70 | Eff 75% | PF | 72 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | CE | Bearing PE | 6203 | ||
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 31 LB | Enclosure | DP | Lubrication | STANDARD |
| Nameplate | A-92005-12 | Mounting | ROUND | Rotation | SELECTIVE CCW |

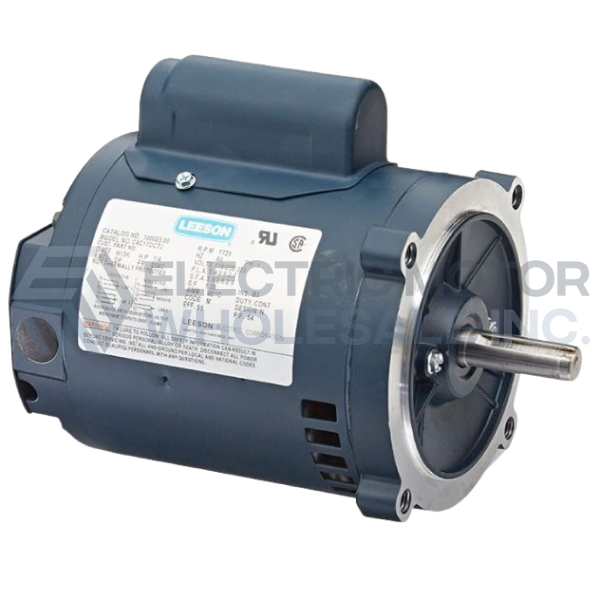

Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 100357.00
Stock # 100357
