1/2HP LEESON 3450RPM 56C DP 115/208-230V 1PH MOTOR 100356.00

1/2HP LEESON 3450RPM 56C DP 115/208-230V 1PH MOTOR 100356.00

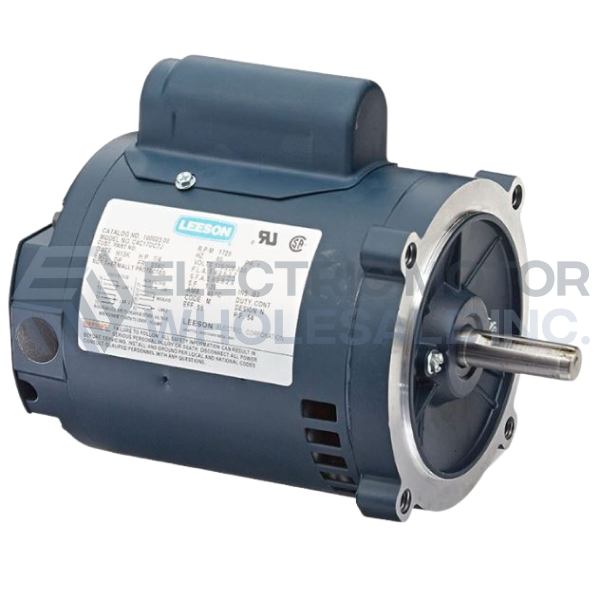

Picture is for reference only.

Part Number:

100356.00

Model/Spec Number:

C4C34DC13G

Manufacturer:

Leeson Obsolete
100356.00 LEESON 1/2HP Single Phase Electric Motor for use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

20 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.40.0000

UPC:

691720004791

Technical Details

Application:

General Purpose

Output HP:

1/2

Output KW:

.37

Output RPM:

3450

Frame NEMA:

56C

Mount NEMA:

C-Face No Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

115/208-230

Frequency (Hz):

60
