1/3HP LEESON 3450RPM 56C DP 1PH MOTOR 100355.00

LEESON 100355.00 has been Superseded by E100355.00

Catalog Number:  100355.00
Model Number:  A4C34DC12 H
Description:  1/3HP,345RPM,56C,DP,1PH,60HZ
Ship Weight:  17 lbs.
Volts 115 Volts 208-230 Volts
F.L. Amps 5.6 F.L. Amps 2.5-2.8 F.L. Amps
S. F Amps 6.4 S. F Amps 3-3.2 S. F Amps
RPM 3600 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE CD
KW 0.25 Model # A4C34DC12H
Frame S56C Serv. Factor 1.35 Phase 1
Max Amb 40 Design N Code M
Insul Class B Protection AUTOMATIC Therm.Prot. CEG69GV
Eff 100% 63 Eff 75%   PF 59
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE   Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 15 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-6 Mounting ROUND Rotation SELECTIVE CCW

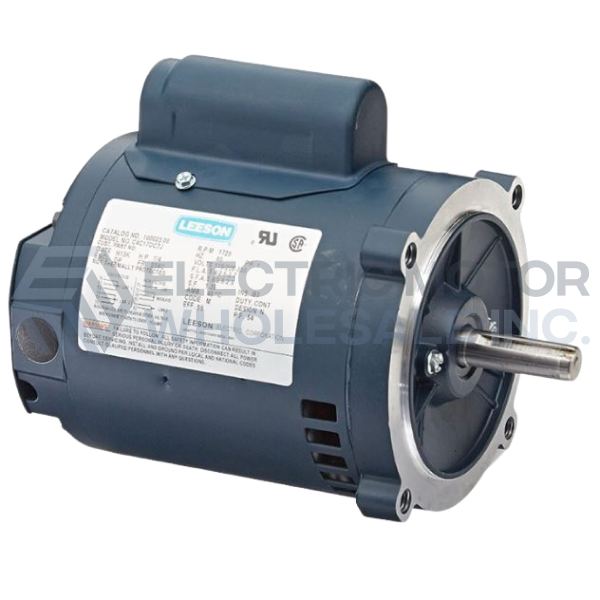

1/3HP LEESON 3450RPM 56C DP 1PH MOTOR 100355.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 100355.00
Stock # 100355
