3/4HP LEESON 1725RPM 56 DP 1PH MOTOR 100065.00

LEESON 100065.00 has been Superseded by E119860.00

Catalog Number:  100065.00
Model Number:  A4C17DJ11 K
Description:  3/4HP,1725RPM,56,DP,1PH,60HZ
Ship Weight:  26 lbs.
Volts 115 Volts 208-230 Volts
F.L. Amps 11 F.L. Amps 5.4-5.5 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 3/4 Duty CONTINUOUS TYPE CD
KW 0.56 Model # A4C17DJ11K
Frame S56 Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection AUTOMATIC Therm.Prot. CEJ53CV
Eff 100% 66 Eff 75%   PF 66
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE   Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 25 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-6 Mounting RESILIENT BASE Rotation SELECTIVE CCW

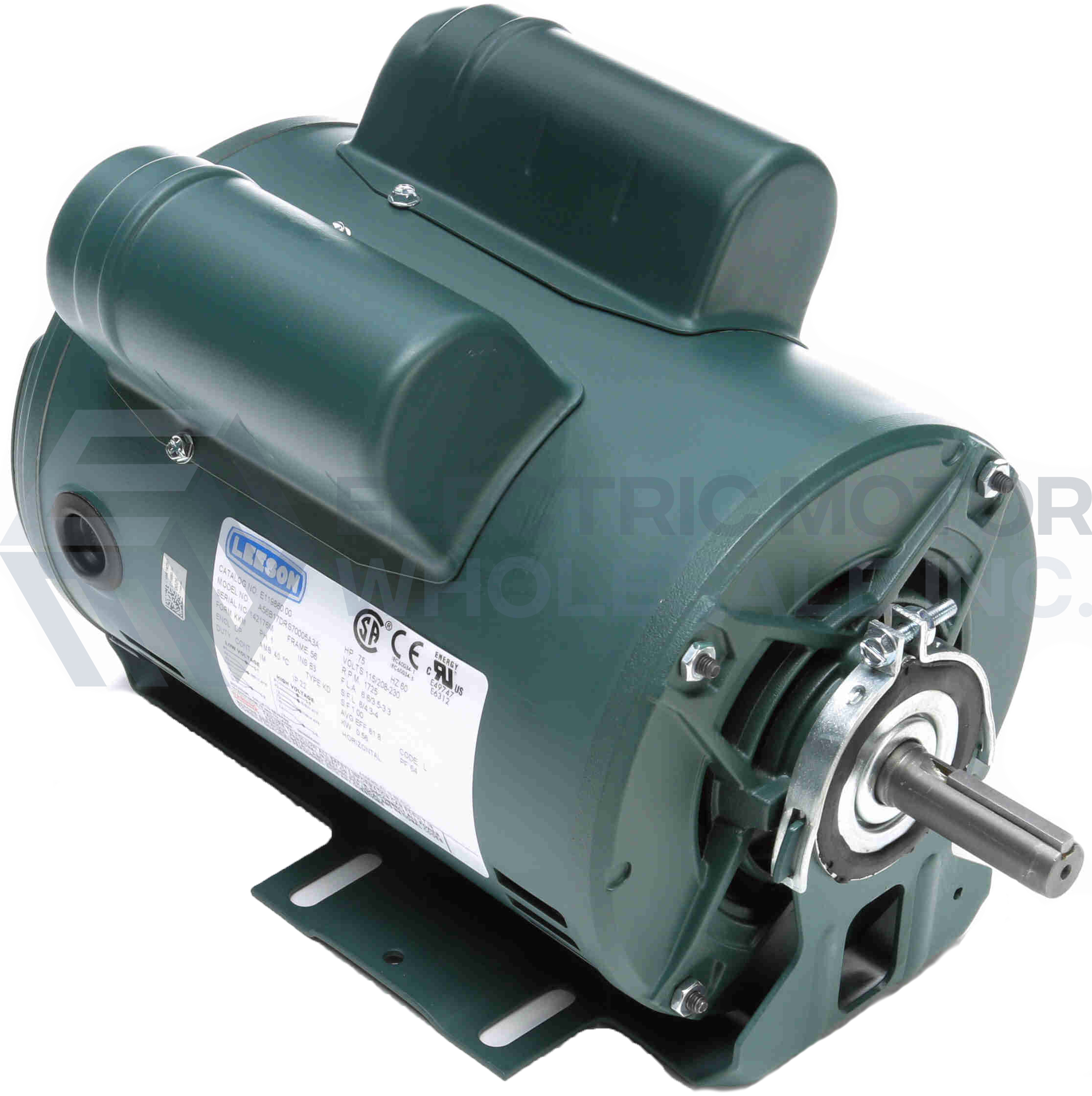

3/4HP LEESON 1725RPM 56 DP 1PH MOTOR 100065.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 100065.00
Stock # 100065
