3/4HP LEESON 3450RPM 56C DP 1PH MOTOR 100055.00
LEESON 100055.00 has been superseded by E100055.00
| Catalog Number: | 100055.00 |
| Model Number: | A4C34DC2 G |
| Description: | 3/4HP,3450RPM,56C,DP,1PH,60HZ |
| Ship Weight: | 24 lbs. |
| Volts | 115 | Volts | 208-230 | Volts | |
| F.L. Amps | 9.8 | F.L. Amps | 4.8-4.9 | F.L. Amps | |
| S. F Amps | 11 | S. F Amps | 5.4-5.5 | S. F Amps | |
| RPM | 3600 | Hertz | 60 | ||
| HP | 3/4 | Duty | CONTINUOUS | TYPE | CD |
| KW | 0.56 | Model # | A4C34DC2G | ||
| Frame | S56C | Serv. Factor | 1.25 | Phase | 1 |
| Max Amb | 40 | Design | N | Code | K |
| Insul Class | B | Protection | AUTOMATIC | Therm.Prot. | CEG67GV |
| Eff 100% | 70 | Eff 75% | PF | 72 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | CE | Bearing PE | 6203 | ||
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 27 LB | Enclosure | DP | Lubrication | STANDARD |
| Nameplate | A-92005-6 | Mounting | ROUND | Rotation | SELECTIVE CCW |

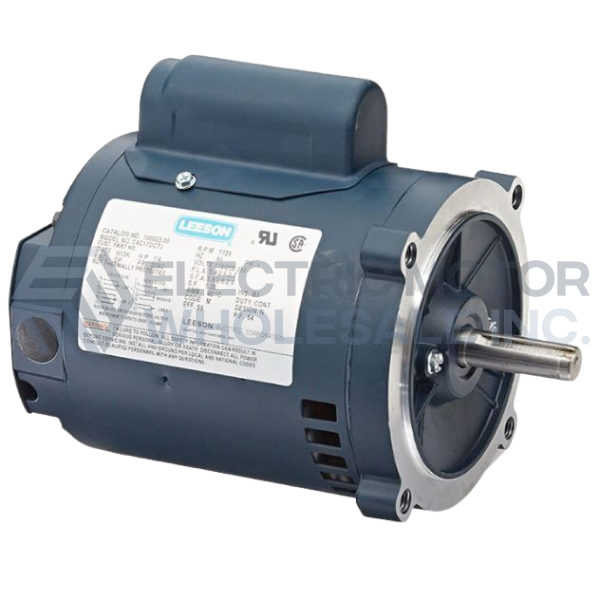

Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 100055.00
Stock # 100055
