1/2HP LEESON 3450RPM 56C DP 115/208-230V 1PH MOTOR 100054.00

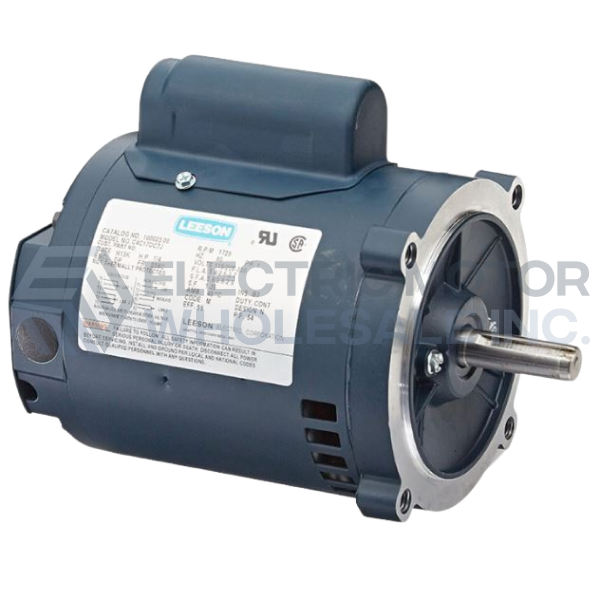

Picture is for reference only.

Part Number:

100054.00

Model/Spec Number:

A4C34DC1G

Manufacturer:

Leeson Obsolete

100054.00 LEESON 1/2HP HP Single Phase Electric Motor for use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

21 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.40.0000

Technical Details

Specifications

Application:	General Purpose
Output HP:	1/2
Output KW:	.37
Output RPM:	3450
Frame NEMA:	56C
Mount NEMA:	C-Face No Base
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	115/208-230
Frequency (Hz):	60

Documentation

Motor Drawing

Connection Diagram

Additional Information

Volts	115	Volts	208-230	Volts
F.L. Amps	6.8	F.L. Amps	3.3-3.4	F.L. Amps
S. F Amps	7.6	S. F Amps	3.9-3.8	S. F Amps
RPM	3600	Hertz	60
HP	1/2	Duty	CONTINUOUS	TYPE	CD
KW	0.37	Model #	A4C34DC1G
Frame	S56C	Serv. Factor	1.25	Phase	1
Max Amb	40	Design	N	Code	L
Insul Class	B	Protection	AUTOMATIC	Therm.Prot.	CEG69GV
Eff 100%	66	Eff 75%		PF	71
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6203
CC Number		CE		Bearing PE	6203
Load Type		Inverter Type	NONE	Speed Range	NONE
Motor Wt.	21 LB	Enclosure	DP	Lubrication	STANDARD
Nameplate	A-92005-6	Mounting	ROUND	Rotation	SELECTIVE CCW
