3/4HP LEESON 3450RPM 56 DP 1PH MOTOR 100053.00

Catalog Number:  100053.00
Model Number:  M4C34DH3F
Description:  3/4HP,3450RPM,56,DP,1PH,60HZ
Ship Weight:  28 lbs.

LEESON ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • Manual Overload Protection
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 9.8 F.L. Amps 4.8-4.9 F.L. Amps
S. F Amps 11 S. F Amps 5.4-5.5 S. F Amps
RPM 3600 Hertz 60
HP 3/4 Duty CONTINUOUS TYPE CD
KW 0.56 Model # M4C34DH3F
Frame S56 Serv. Factor 1.25 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection MANUAL Therm.Prot. CEG67GA
Eff 100% 70 Eff 75%   PF 72
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE   Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 28 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-6 Mounting RIGID Rotation SELECTIVE CCW

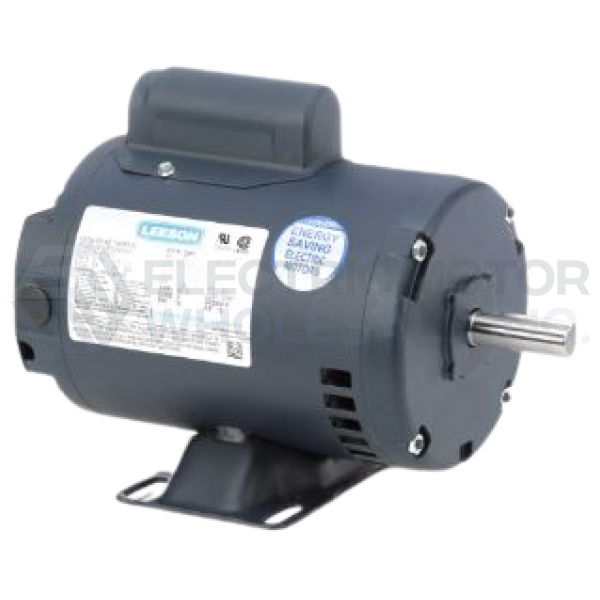

3/4HP LEESON 3450RPM 56 DP 1PH MOTOR 100053.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 100053.00
Stock # 100053
Price: $185.00
Compare At: $447.00
