3/4HP LEESON 1725RPM 56H DP 1PH MOTOR 100046.00
3/4HP LEESON 1725RPM 56H DP 1PH MOTOR 100046.00

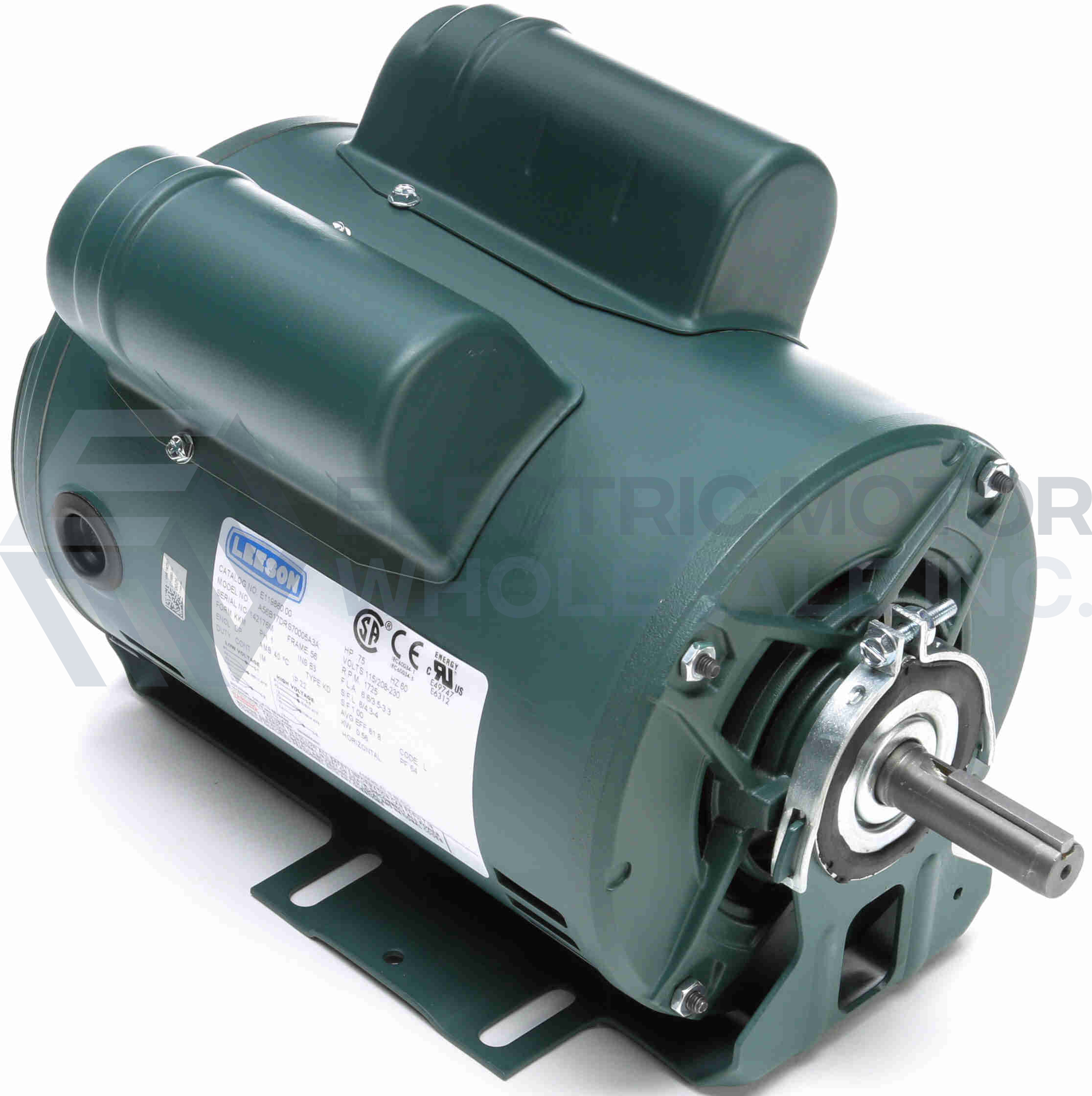

Picture is for reference only.
Part Number:
100046Manufacturer:
Leeson ObsoleteManufacturer Part Number:
100046.00Click below to request an agent review potential options.
Shipping Details
Free No Rush Shipping
Dimensions:
12 x 20 x 12 inchesTechnical Details
Specifications
Application: | General Purpose, HVAC |
Output HP: | 3/4 |
Output RPM: | 1300-1800 |
Frame NEMA: | 56, 56/56H, 56H |
Mount NEMA: | Resilient Base |
Enclosure NEMA: | DP, OPEN, ODP, OPSB |
Voltage: | 115, 115/208-230, 115/230, 208, 208-230, 230 |
Frequency (Hz): | 60 |
Thermal Protection: | Manual |
Phase: | 1-Phase |
Documentation
Additional Information
LEESON 100046.00 has been Superseded by E119858.00
| Catalog Number: | 100046.00 |
| Model Number: | M4C17DJ18 H |
| Description: | 3/4HP,1725RPM,56H,DP,1PH,60HZ |
| Ship Weight: | 29 lbs. |
| Volts | 115 | Volts | 208-230 | Volts | |
| F.L. Amps | 10.8 | F.L. Amps | 5.3-5.4 | F.L. Amps | |
| S. F Amps | 12.4 | S. F Amps | 6.1-6.2 | S. F Amps | |
| RPM | 1800 | Hertz | 60 | ||
| HP | 3/4 | Duty | CONTINUOUS | TYPE | CD |
| KW | 0.56 | Model # | M4C17DJ18H | ||
| Frame | S56 | Serv. Factor | 1.25 | Phase | 1 |
| Max Amb | 40 | Design | N | Code | K |
| Insul Class | B | Protection | MANUAL | Therm.Prot. | CEJ53CA |
| Eff 100% | 70 | Eff 75% | PF | 64 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | CE | Bearing PE | 6203 | ||
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 29 LB | Enclosure | DP | Lubrication | STANDARD |
| Nameplate | A-92005-6 | Mounting | RESILIENT BASE | Rotation | SELECTIVE CCW |
